PP-9732W
产品介紹
01

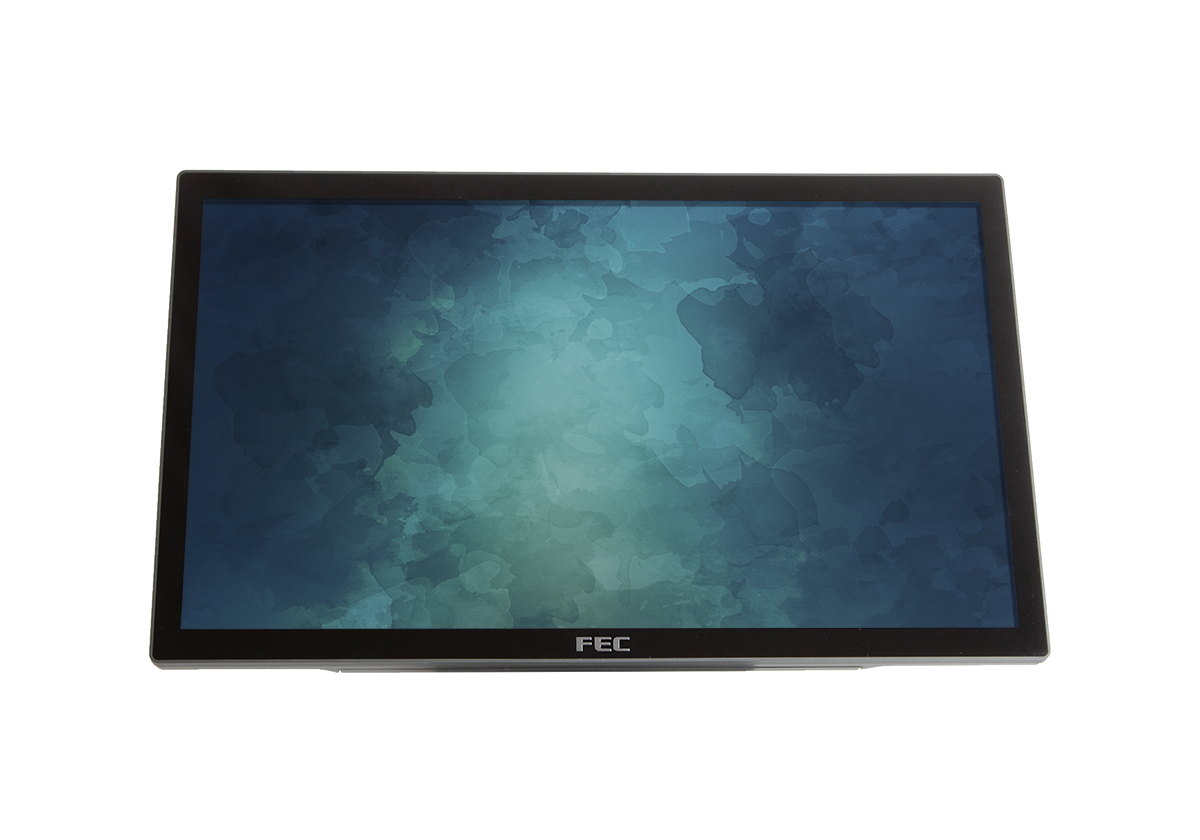

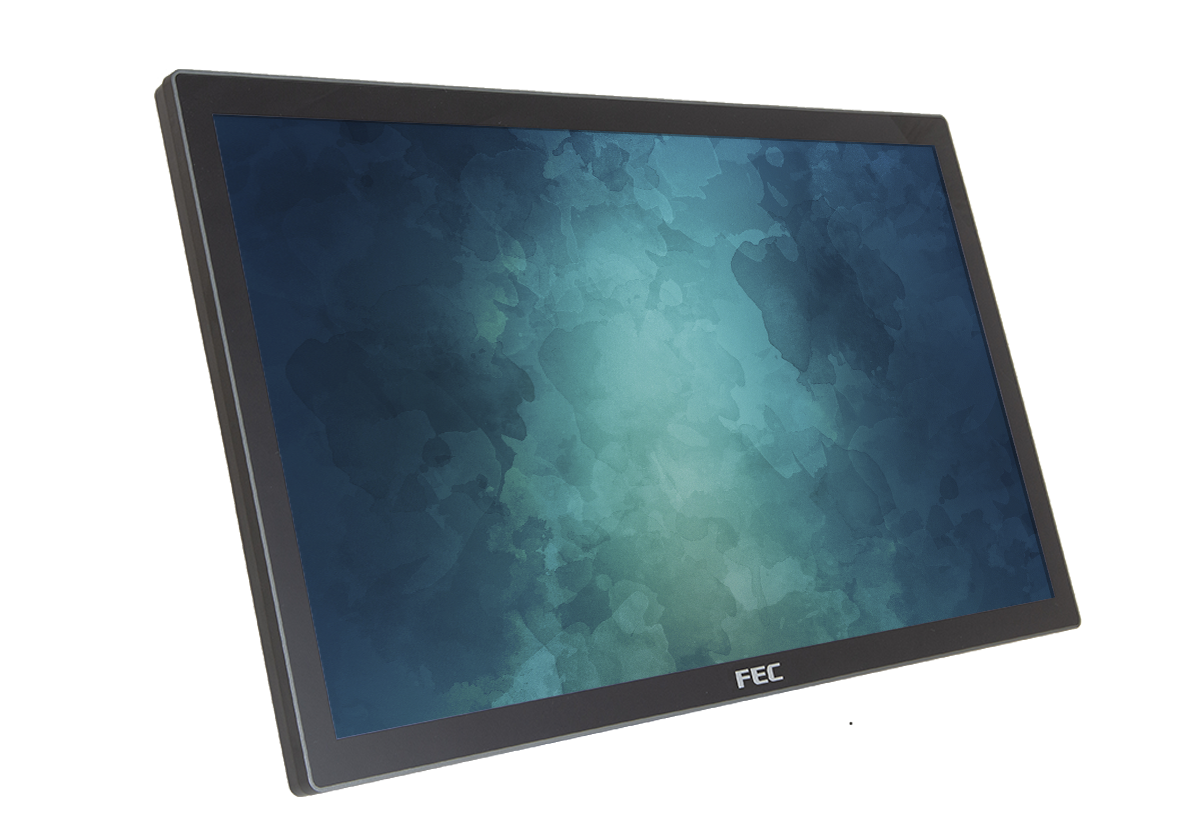

22" Fanless Panel PC

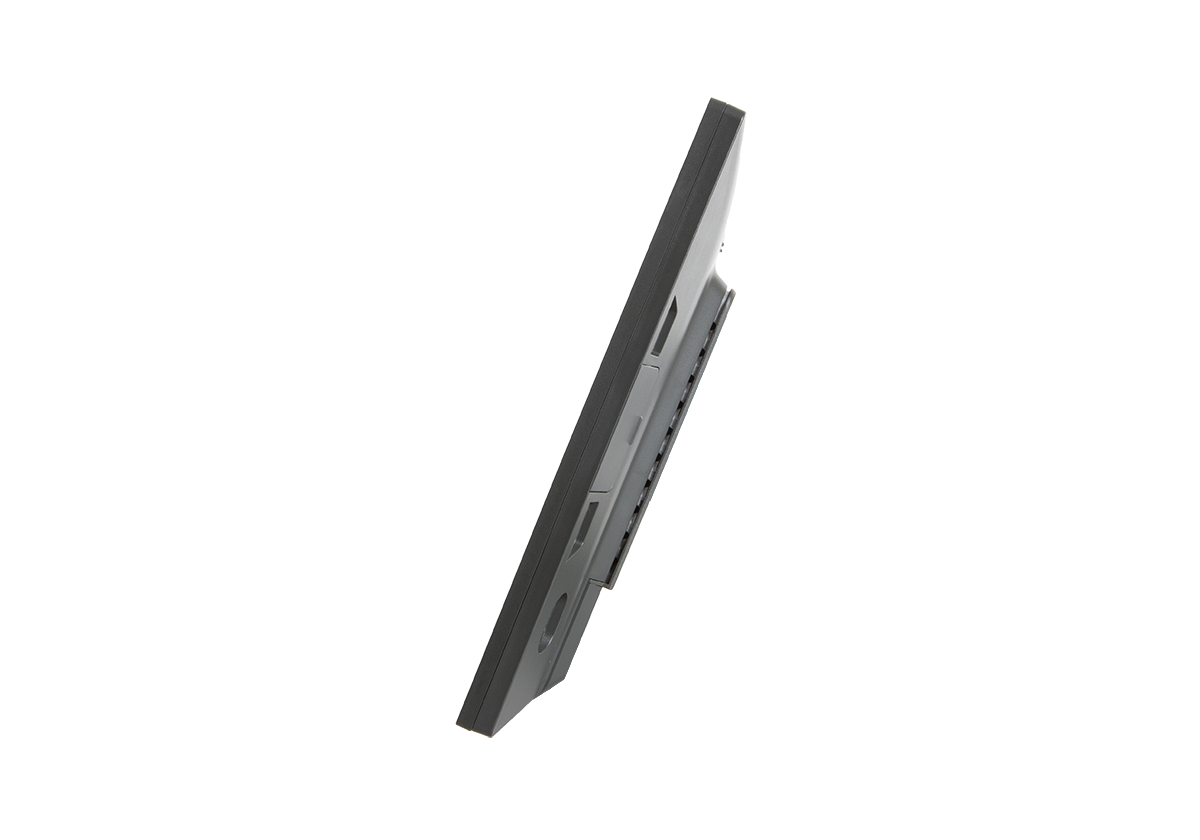

XPPC PP-9732W is an ultra slim All-in-One panel PC.
- Platform: Celeron J6412
- Processor: J6412
- System Storage: 1 x M.2 M Key (PCIe)
02
Digital Information Signage

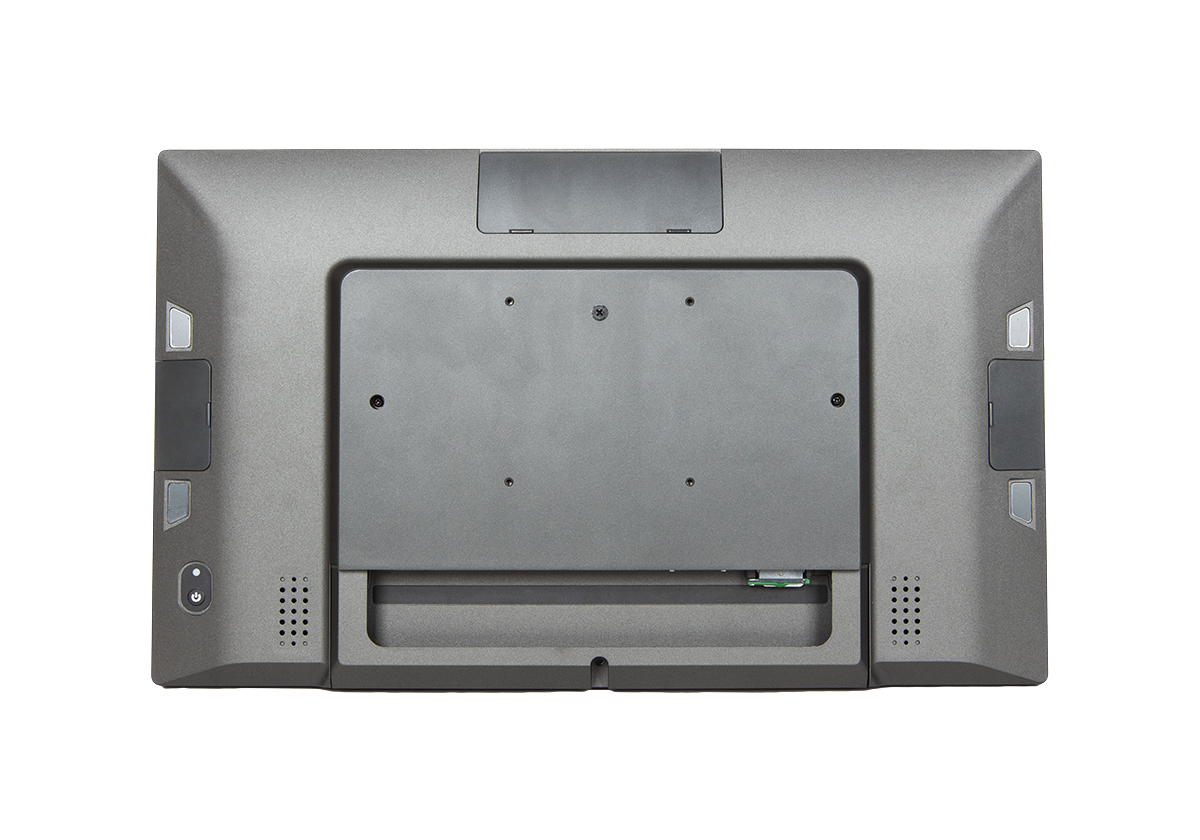

FEC 22 inch Panel PC can be used in different way, with universal VESA wall mount design, they can be easily mounted on any flat surface or connect with FEC Stand to use as desktop type,
03
Large Enterprise Environment
Large screen All in One Panel PC is perfected for digital signage, product display, industrial control system or apply with self-ordering system.
規格
处理器
- Intel® Celeron® J6412 1.5M Cache, 2.0GHz
内存
- 4GB Standard, Max 128 GB (1 x So-DIMM DDR4)
硬盘
- 1 x M.2 M Key (PCIe / SATA)
网络
- 1 x M.2 E Key 802.11ac + BT 4 (Optional)
扬声器
- 2 x 2W Internal Speaker
显示器
- 22" TFT, 1920 x 1080
触摸屏
- True-Flat PCAP
亮度
- 250 nits
电源
- 20V / 90W or 20V / 130W External Adapter
系统支持
- Windows 10 IoT Enterprise
- Windows 11 IoT Enterprise (Est. available in Q3 2023)
- Linux
TPM
- TPM2.0: Intel PTT
安装
- VESA 100 x100 mm
认证
- FCC / CE Class B
外观
- Aluminum Die-Casting + Plastic
- Galaxy Grey
工作温度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
尺寸 (W x H x D)
- Product: 512.30 x 308.91 x 38.8 mm
- Carton: 662 x 210 x 440 mm
重量
- Net: 5.5Kg
- Gross: 7.0 Kg
端口
- 1 x RJ11 Cash Drawer (12/24V)
- 3 x USB 3.0 Type A
- 1 x USB 2.0 Type A
- 1 x SMART DD (Reserved for FEC 2nd Display)
- 1 x HDMI
- 2 x RJ45(RS232)
- 1 x Giga LAN
- 1 x 20V DC-In
- 1 x SMART IO (Reserved for optional addition IO interface)
扩展
- Universal IO (Reserved for 1 of 4):
- 1 x 24V P-USB
- 1 x 12V P-USB
- 2 x USB 2.0
- 1 x RJ45 (RS232)
- SMART IO for converting cable to (1 of 4):
- 1 x DB9 (RS232)
- 1 x 12V DC Out
- 1 x USB Type B 2.0 + 24V DC Out
- 1 x USB Type B 2.0 + 12V DC Out
