AT-1450
產品介紹
{char}
01

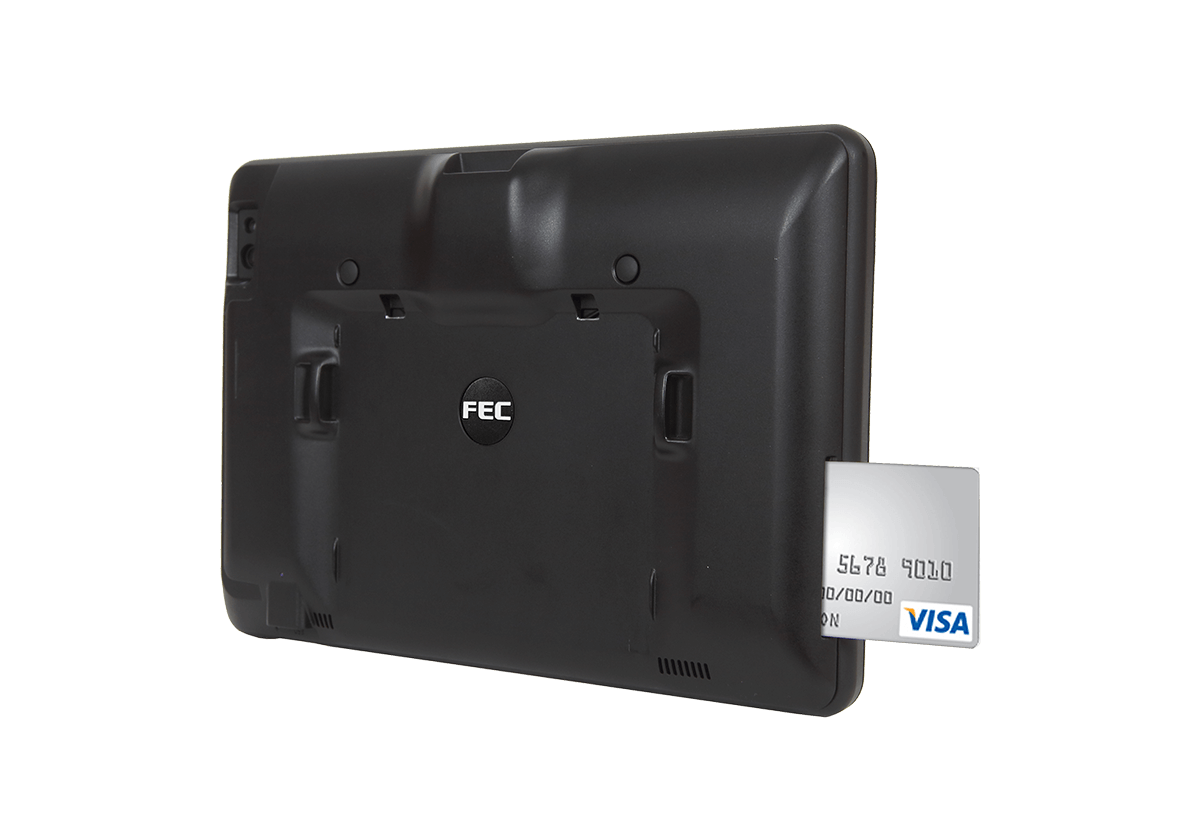

Powerful Service Cradle
Design for better protection (1.2 meter free fall certified) and strengthening more applications. With ID/2D barcode scanner, MSR & IC card reader, NFC reader, additional high capacity battery, USB 2.0 port, this is FEC new generation powerful device.
02
Extendable
Design for better protection (1.2 meter free fall certified) and strengthening more applications. With 1D/2D barcode scanner, MSR & IC card reader, NFC reader, additional high capacity battery, USB 2.0 port, this is FEC new generation powerful device.
03

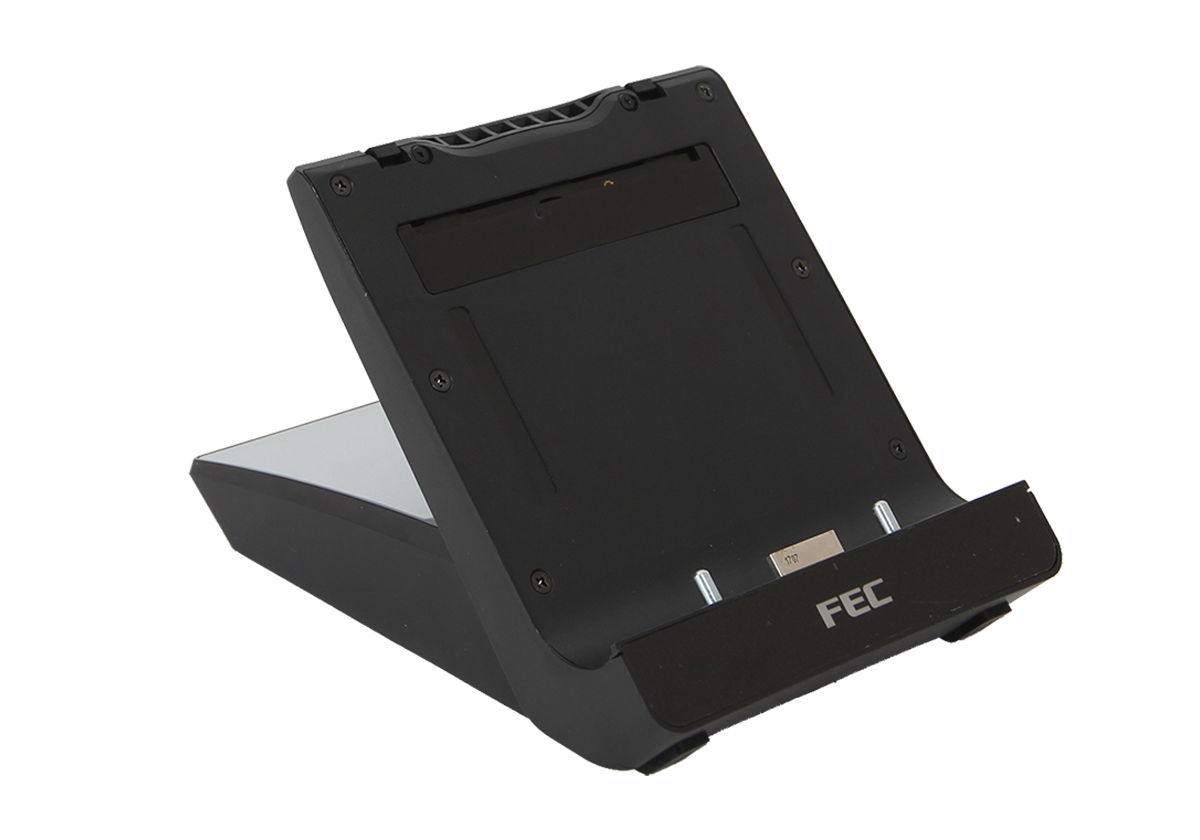

Expandable Service Station
Docking port for instant data transmitting & power charging, various optional I/O INTERFACES FOR DIFFERENT APPLICATIONS. This foldable tiny footprint station is more than just efficient space using, but completion of all nowadays requirements.
Type A
Type B
Type C
Type G
Type H
04
Windows & Android OS Option
AT-1450 supports both Windows (Win 10) and Android (5.1) operation system to accommodate various software requirements.
05
One Platform, Unlimited Solutions
AT-1450, PP-1453, and PP-1455 all share with same platform and design concept. There is no limitation of your creative solutions with AerLite Series!
PP-1453
PP-1455
PP-1450
規格
CPU
- Intel Cherry Trail Quad Core Atom X5 Z8350 up to 1.92G
Memory
- 2GB DDR3 On Board (for Android)
- 4GB DDR3 On Board (for Windows)
Storage
- 32G Build-in eMMC (Android)
- 64G Build-in eMMC (Windows)
- Micro SD (Max:128GB)
Connection
- WIFI 802.11 ac & BT 4.1
Speaker
- 2 x 1W Internal Speaker
Display
- 10.1” IPS, 1280 x 800
Touch
- True-Flat PCAP
Brightness
- 350 nits
Camera
- Front: 2 MP / Rear: 8 MP (Optional)
Battery
- 7200mAh (Built-in)
Power
- 5V / 10W External Adapter
OS
- Windows 10 IoT Enterprise
- Android 5.1
Certification
- FCC / CE Class B
Appearance
- Black
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Tablet: 265 x 182 x 11 mm
- Tablet+Cradle: 268 x 187 x 32 mm
- Tablet+Cradle+Station: 268 x 286 x 222 mm
Weight
- Tablet: 0.662 Kg
- Tablet+Cradle: 1.1 Kg
- Tablet+Cradle+Station: 3.5 Kg
