BP-864 equips with latest Intel® H81 Chipset and offersselections of Intel® Celeron®, Core i3 or Core i5 processors for flexible applications. With FEC revolutionary design, BP-864 delivers the best modularity. Optional 2nd I/O interfaces provide more availabilities to fit various situations.

01

High Performance Compact Box System

BP-864 is a high performance Box PC with evolutionary design to deliver the best modularity. BP‍-‍864 is a compact pc and an All-in-One POS when integrated with a monitor. It equips with latest Intel® H81 Chipset and offers selections of Intel® Celeron®, Core i3 or Core i5 processors for flexible applications. Optional 2nd I/O gives more availabilities to fit different situations .

02

Supreme, Silk & Sleek

BP-864 is made of die-casting alloy aluminum with ultra slim profile. The unique cooling design enable this high performance BOX PC deliver perfect thermal management. The sleek and silk line surface gives this smart POS system a stylish attractiveness. Protected with light plastic case in black color, the elegant appearance is suitable for all occasions.

03

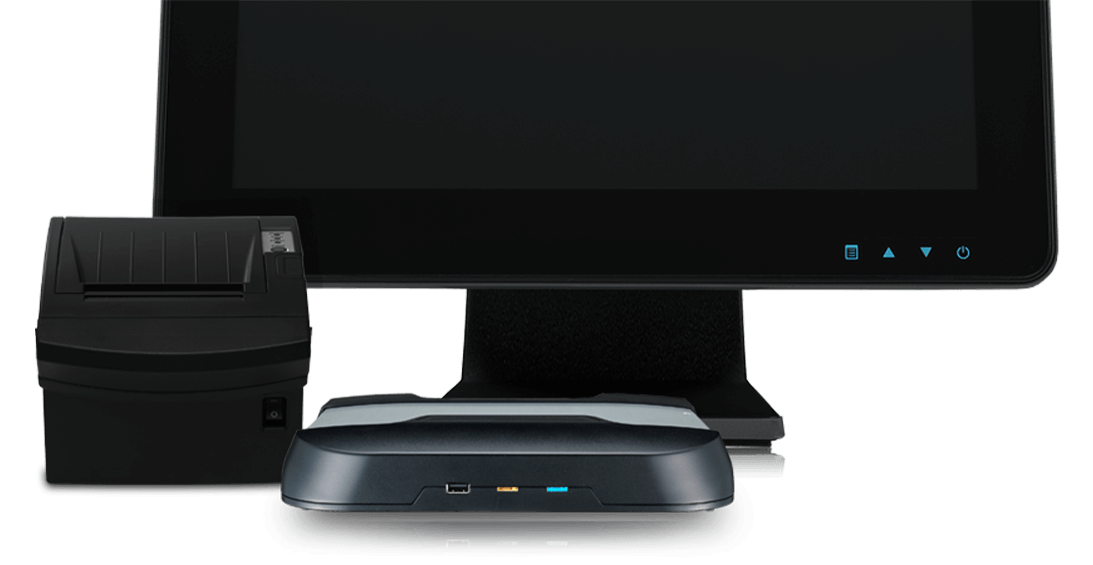

All-in-One Modular Design

BP-864 is the world’s first box pc and an All-in-One POS system when attached with a monitor based on the same CPU unit. Only simple procedures to complete the transformation.

This impressive design is incredibly easy to understand with, and gives the owner to utilize the most benefit of it and enjoy the flexibility and convenience.

04

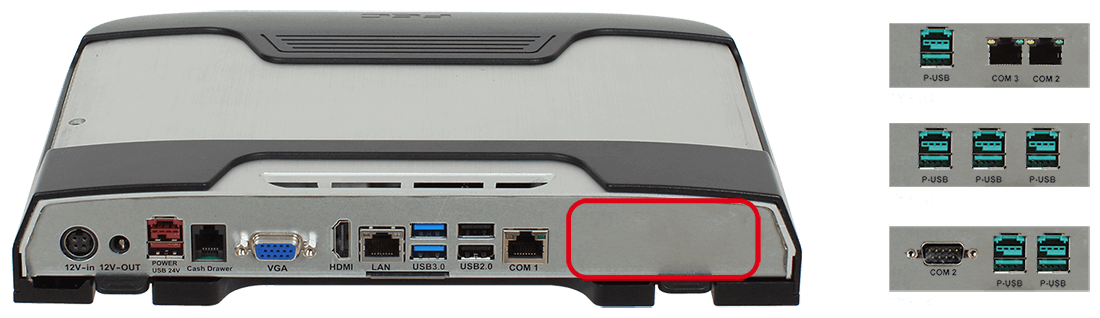

Optional 2nd I/O

FEC understand flexibility is important when installing. Providing more availabilities to meet different situations is what we promised to our customers. We offer 3 types of optional I/O modules when placing order to best fit BP-864 into any scenario.

05

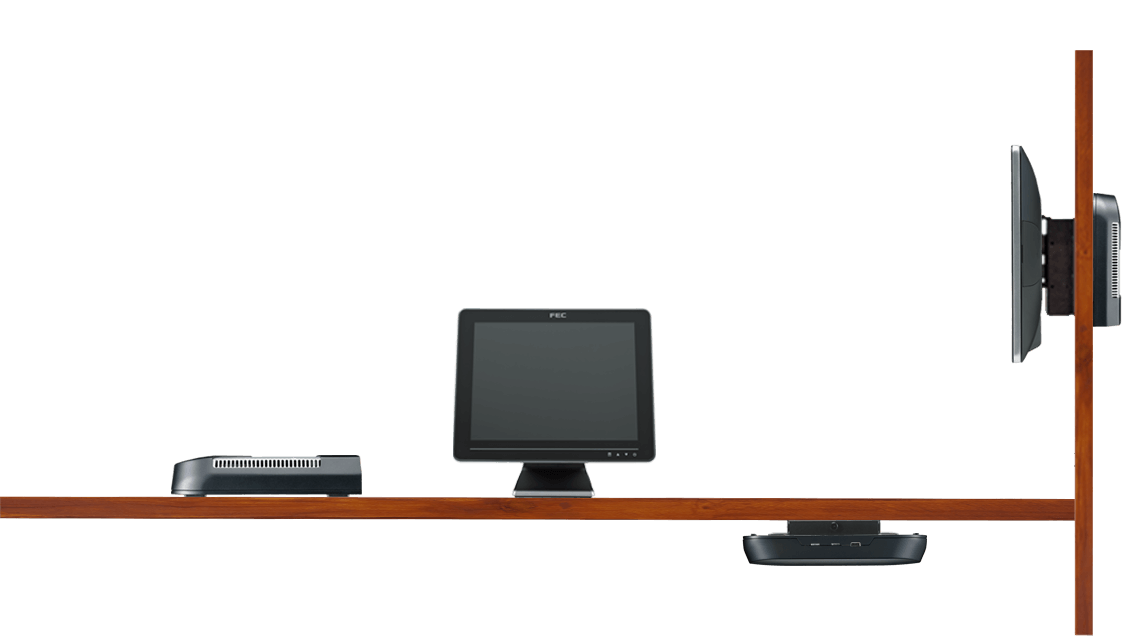

Solutions With Creativity

Creativity and availability are what FEC offer to all customers. We know space is precious and not always flat as a desk. From desk top, wall, or any limited spaces, you can use BP-864 anywhere.

With FEC mounting device, BP-864 can be simply installed everywhere!

06

Intel@ Inside BP-864

  • 4th Generation Intel® Core™ i3 and i5 Processors
  • Intel® H81 Chipset (Intel® DH82H81 PCH)

Specifications

CPU
CPU
  • Intel® Celeron G1820TE 2.20GHz
  • Intel® Core i3-4330TE 2.40 GHz
  • Intel® Core i5-4590T 3.0 GHz
Memory
Memory
  • 4GB Standard, Max 16GB (2 x So-DIMM )
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
  • 1 x M.2 Storage (Optional)
Connection
Connection
  • 2 x M.2 E Key 802.11ac + BT (Optional)
Power
Power
  • 12V / 150W External Power Adaptor
OS
OS
  • Windows 10
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Black with Silver Trim
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 299 x 48 x 223 mm
  • Carton: 510 x 144 x 328 mm
Weight
Weight
  • Net: 2.8 Kg
  • Gross: 4.7 Kg
Port
Port
  • 1 x RJ45 (COM1) RS232 with RI/5V/12V Selectable
  • 4 x USB Port (2 x USB 2.0, 2 x USB 3.0)
  • 1 x PUSB 24V
  • 1 x RJ11 Cash Drawer (12V / 24V)
  • 1 x RJ45 GigaLAN
  • 2 x Video port
  • 1 x 12V DC input
  • 1 x 12V DC Jack 2.5 mm output

  • Front I/O:
    1 x USB 2.0 Type A
Optional
Optional
  • Type C: 2 x RJ454 (COM 2 & COM 3) with RI / 5V / 12V Selectable; 1 x PUSB Port 12V
  • Type G: 3 x PUSB Port 12V
  • Type K: 2 x PUSB Port 12V; 1 x DB9 (COM 2) RS232 with RI / 5V / 12V Selectable
