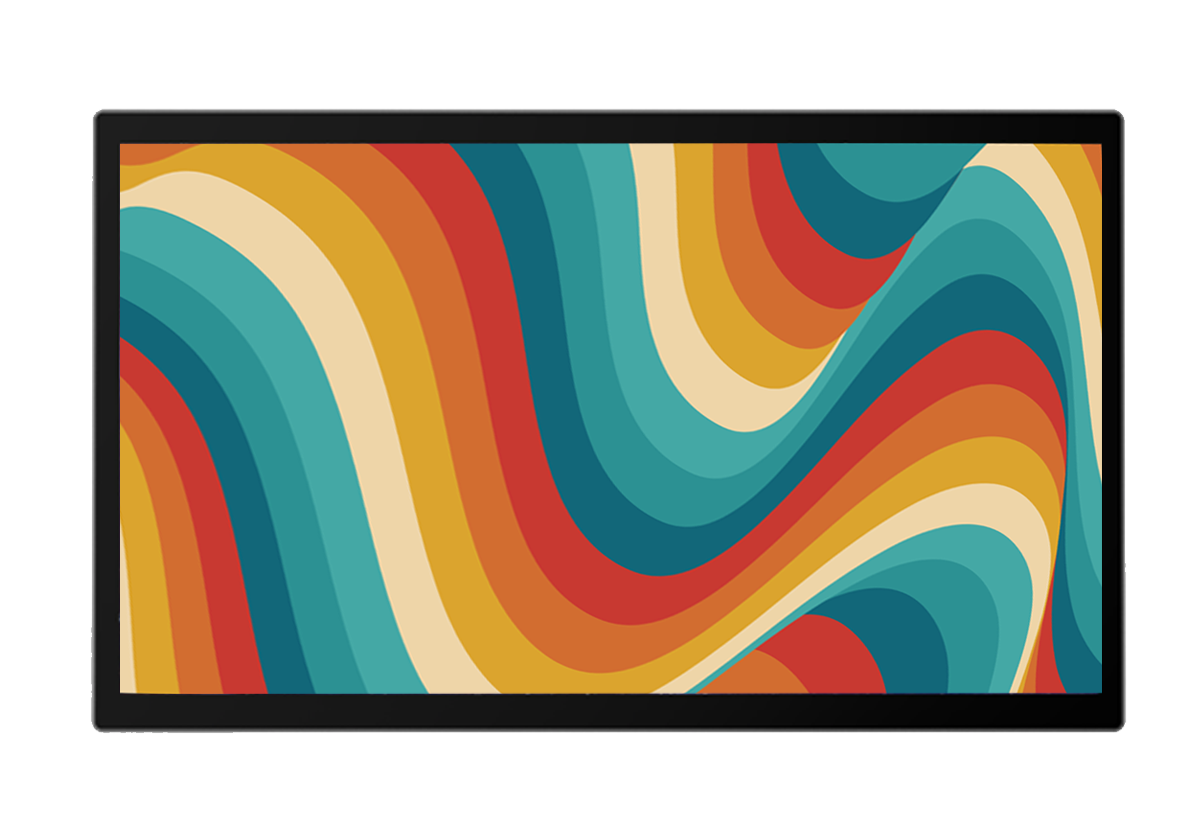

LD-9032W

    Bigger Screen Bigger Possibility

    Use it as a 2nd screen or a digital signage,

    transaction details and marketing campaign message are beautifully delivered!

    proimages/Web_Data/product/06-Monitors/LD-9022W/1000x336.png
    Compare
    Inquiry

    Quick find

    MONITOR Series

    Bigger Screen Bigger Possibility.

    LD Series Features
    01

    Slim Border Enhances

    Overall Aestheries!

    LD Series Features
    02

    Flexibility

    Large Screen helps kitchen system run smoothly.

    LD Series Features
    03

    Friendly Touch Panel

    LD Series Features
    04

    Connectivity?

    All You Needs!

    LD Series Features
    05

    Where You Want!
    Where You MOUNT!

    LD Series Features
    06

    Multiple Solutions

    22", 32", or 42" The Best Choice!

    LD Series Features

    Specifications

    Display
    Display
    • 31.5" TFT , 1920 x 1080
    Touch
    Touch
    • True-Flat PCAP
    • Optional:
      - Hovering Touch (Support additional 3mm max glass)
      - AG Coating
    Brightness
    Brightness
    • 400 nits
    MTBF
    MTBF
    • 70K Hours
    Speaker
    Speaker
    • None
    Power
    Power
    • 12V/100W Internal Switching Power Supply

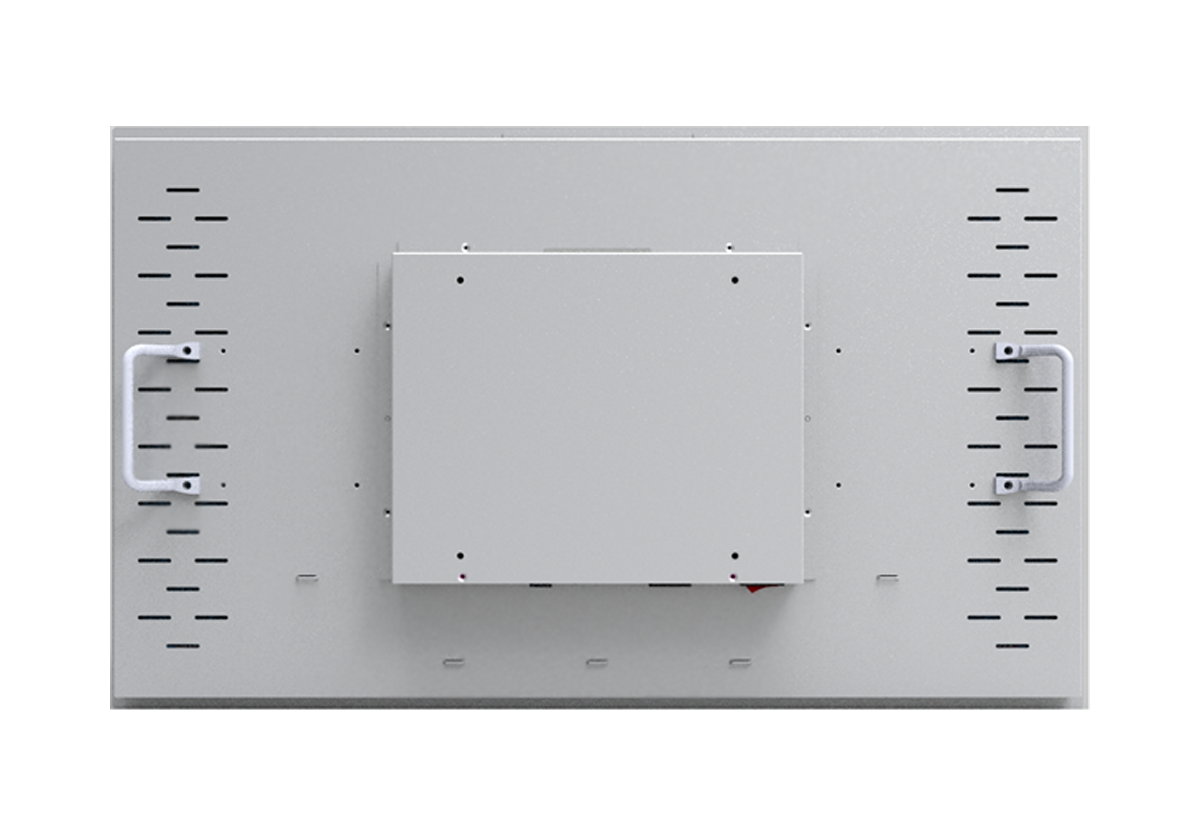

    Mounting
    Mounting
    • Panel Mount
    • Rear Mount
    • VESA 200 x 200 mm
    Certification
    Certification
    • FCC / CE Class B
    Appearance
    Appearance
    • Metal SGCC
    Temperature
    Temperature
    • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
    • Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
    Dimensions (W x H x D)
    Dimensions (W x H x D)
    • Product: 741.40 x 442.85 x 66.90 mm
    • Carton: 838 x 186 x 558 mm
    Weight
    Weight
    • Display Only (Net): 12.5 Kg
    • Display Only (Gross): 15 Kg
    Port
    Port
    • AD board Version:
      1 x HDMI
      1 x VGA
      1 x USB 2.0 Type B
      1 x DC-in 12V
      1 x RJ11
    Optional
    Optional
    • Optional External OSD Keypad
