FEC proudly present better and lighter Panel PC featuring new Intel® processor AerPPC Lite PP-1453 & PP-1455. It is beautifully designed with multiple innovative features for modern business. This slim & light product system is extremely easy to be integrate with brand new AerTab AT-1450 as well as other FEC terminals and peripherals.

01

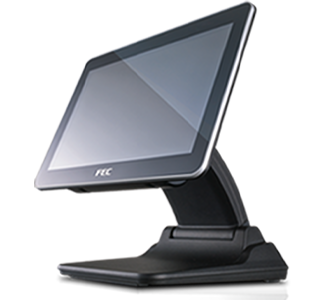

Beautiful Intelligent Design

Ultra slim profile panel pc with tiny foot print, slim profile, foldable dual-hinge stand for outstanding space saving and amazing look.

02

Optional 2nd I/O

Every project is unique and special. With different requirements, FEC offers 2 optional second I/O interfaces.

Type A 2nd I/O

Type B 2nd I/O

03

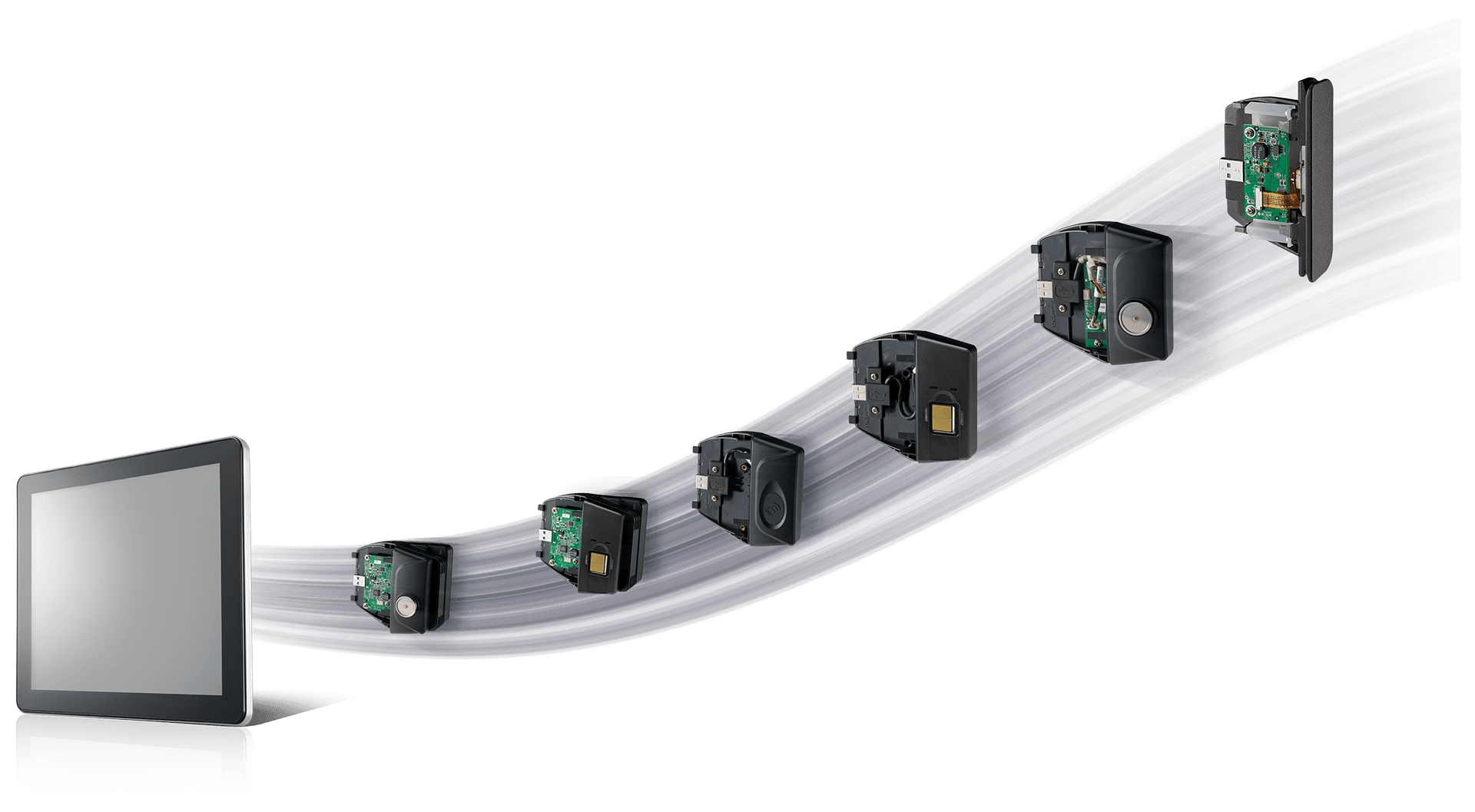

Add-On Device

For PP-1453, FEC provide single function devices such as MSR, iButton, fingerprint and RFID reader.
There are also 2-in-1 devices available that combine MSR with an iButton, fingerprint, or RFID reader.

04

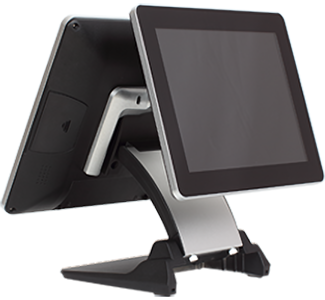

Customer Display & 2nd Screen

Customer Display (LCM/VFD) allows for easy programming with escape sequence commands and features adjustable display height, swivel and tilt. LCD 2nd screen shows the latest store promotion and relevant information.

LCM type

AerArm type

05

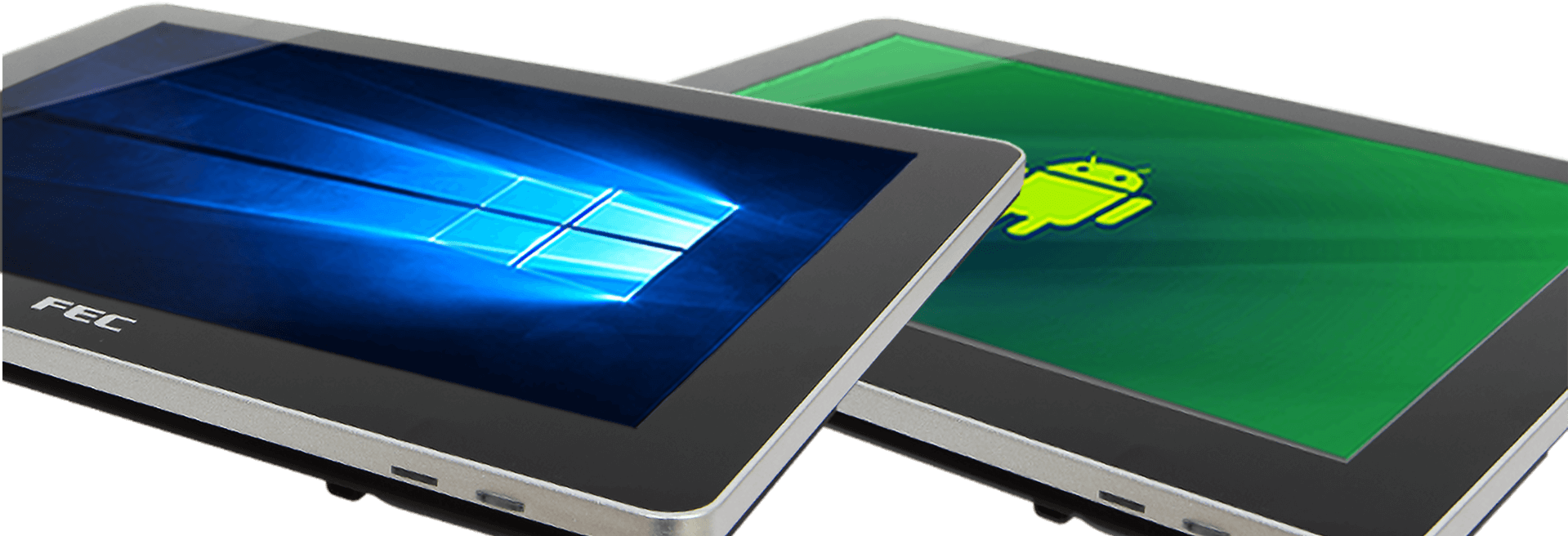

Windows & Android OS Option

PP-1453 supports both Windows (Win 10) and Android (5.1) operation system to accommodate various software requirements.

06

One Platform, Unlimited Solutions

AT-1450, PP-1453, and PP-1455 all share with same platform and design concept. There is no limitation of your creative solutions with AerLite Series!
PP-1453
PP-1455
PP-1450

Specifications

CPU
CPU
  • Intel Cherry Trail Quad Core Atom X5 Z8350 up to 1.92G
Memory
Memory
  • 2GB DDR3 On Board (Android)
  • 4GB DDR3 On Board (Windows)
Storage
Storage
  • 32G Built-in eMMC (Android)
  • 64G Built-in eMMC (Windows)
Connection
Connection
  • WIFI 802.11 ac & BT 4.1
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 13.3” TFT, 1366 x 768
Touch
Touch
  • 5-Wire Resistive
  • True-Flat PCAP
Brightness
Brightness
  • 220 nits
MTBF
MTBF
  • 15K Hours
Power
Power
  • 12V / 90W or 12V / 150W External Adapter
OS
OS
  • Windows 10 Enterprise (64bit only)
  • Android 5.1
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Black with Silver Trim
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 344 x 309 x 222 mm
  • Carton: 477 x 448 x 307 mm
Weight
Weight
  • Net: 3.3 Kg
  • Gross: 5 Kg
Port
Port
  • 4 x USB Type A (1 x USB 3.0, 3 x USB 2.0)
  • 1 x RJ11 Cash Drawer (12V Default / 24V with Type B I/O Only)
  • 1 x RJ45 LAN (10/100)
  • 1 x Audio Line-Out (Optional)
  • 1 x Video Port
  • 1 x 12V DC Output

  • Side I/O Interface:
    1 x USB 2.0 Type A
Optional
Optional
  • Type A: 1 x PUSB 12V / 3 x RJ45 COM
  • Type B: 1 x PUSB 24V / 3 x RJ45 COM
