With innovative & smart design, PP-8642 is an advanced modular All-in-One panel PC. It equips with latest Intel® H81 Chipset and offers selections of Intel® Celeron®, Core i3 or Core i5 processors for flexible applications. To enhance customer experience and increase marketing exposure, PP-8642 is your smartest choice.

01

Slim, Cool & Chic

FEC give you a high performance panel pc with ultra slim profile.

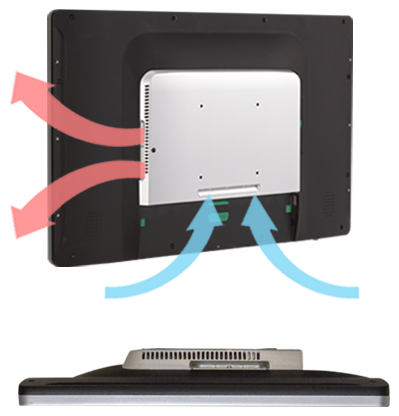

PP-8642 is made of alloy aluminum die-casting with unique cooling design and perfect thermal management.

Sleek and silk-line surface enhance this smart business helper a modern and stylish attractiveness.

02

Innovative Modular Design

PP-8642 is an advanced 22” modular All-in-One panel pc. Panel, CPU, HDD are all simply swappable without complicated procedures.

The design is incredibly easy to understand with, it makes installation service and upgrade very efficient and flexible.

03

Press Then Slide

This FEC' s revolutionary design draws all the attentions! Only 2 steps are needed to start maintaining, changing, assembling. and upgrading. Things are just easy and smooth!

04

Optional 2nd I/O

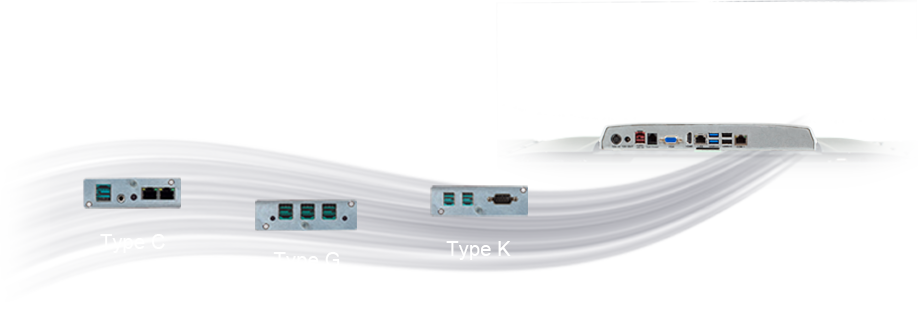

FEC offer 3 types of additional I/O options on the modular main I/O board. With optional 2nd I/O, it creates extra flexibility when purchasing and allows users to fully apply PP-8642 to multiple requirements.

05

Maximize Your Solutions

With simple procedures, PP-8642 can be transformed to an information KIOSK or a wall mounted HD digital signage.

You will be amazed by PP-8642's flexibility and various applications!

06

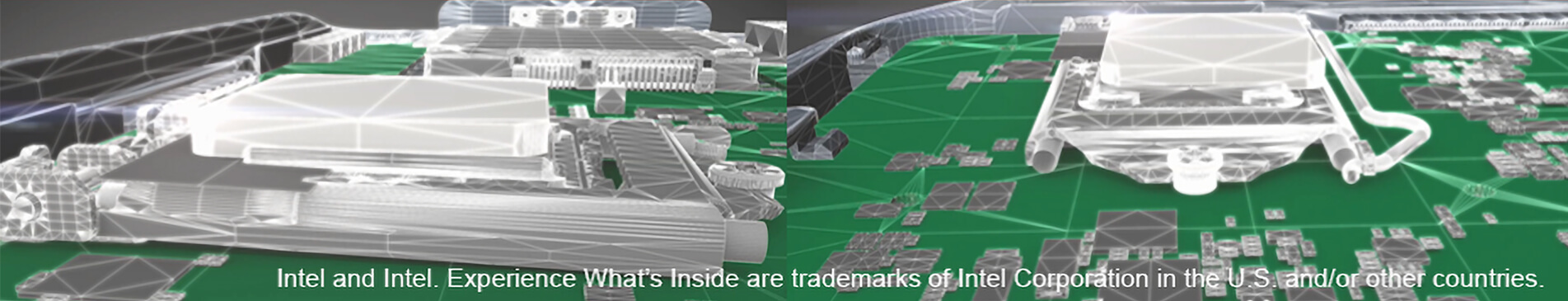

Intel® Inside PP-8642

  • 4th Generation Intel® Core TM i3 and i5 Processors
  • Intel® H81 Chipset (Intel® DH82H81 PCH

Specifications

CPU
CPU
  • Intel® Celeron G1820TE 2.20GHz
  • Intel® Core i3-4330TE 2.40 GHz
  • Intel® Core i5-4590T 3.0 GHz
Memory
Memory
  • 2GB Standard, Max 16GB (2 x So-DIMM DDR3L)
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
  • 1 x M.2 Storage (Optional)
Connection
Connection
  • WIFI 802.11 b/g/n (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 22” TFT, 1920 x 1080
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 250 nits
MTBF
MTBF
  • 50K Hours
Power
Power
  • 12V / 150W External Adapter
OS
OS
  • Windows 10
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Black with Silver Trim
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 530 x 338 x 62.3 mm
  • Carton: 652 x 463 x 212 mm
Weight
Weight
  • Net: 8 Kg
  • Gross: 10 Kg
Port
Port
  • 1 x RJ45 (COM1) RS232 with RI/5V/12V Selectable
  • 4 x USB Type A (2 x USB 2.0, 2 x USB 3.0)
  • 1 x PUSB 24V
  • 1 x RJ11 Cash Drawer (12V / 24V)
  • 1 x RJ45 GigaLAN
  • 2 x Video Port
  • 1 x 12V DC Input
  • 1 x 12V DC Jack 2.5 mm Output

  • Side I/O Interface:
    1 x USB 2.0 Type A
Optional
Optional
  • Type C: 2 x RJ45 (COM 2 & COM 3) RS232 with RI / 5V / 12V Selectable; 1 x PUSB 12V
  • Type G: 3 x PUSB 12V
  • Type K: 1 x DB9 (COM 2) with RI / 5V / 12V Selectable; 2 x PUSB 12V
