FEC proudly introduce brand new high performance AerPPC.
PP-9645 is the world’s 1st modular All-in-One POS system with swappable panel & CPU.
Equipped with Intel® H81 Chipset and selections of Intel® Celeron®, Core i3 or i5 processors, PP-9645 is perfect for all retail and hospitality business owners!

01

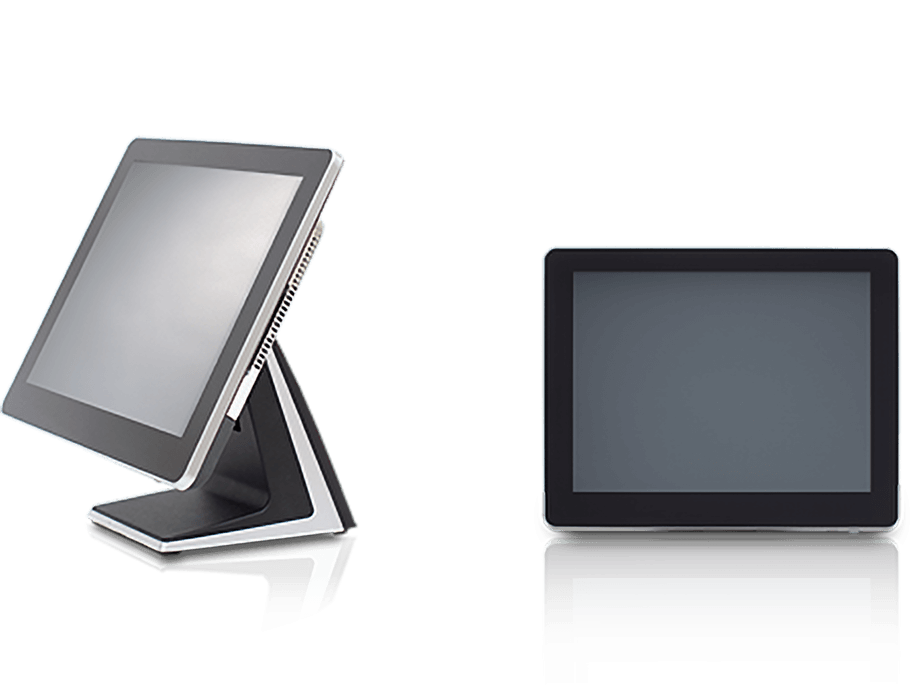

Cool & Style

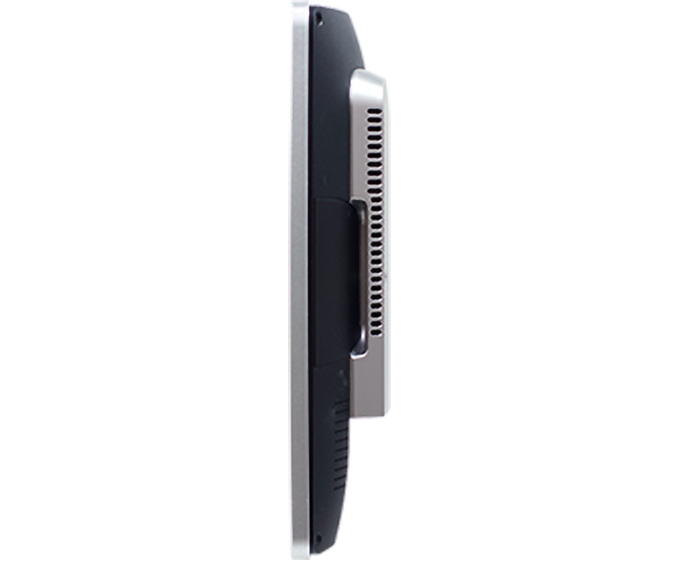

Made of die-casting alloy aluminum with unique cooling design and perfect thermal management.

PP-9645 is a high performance panel pc, but also a smart, modern & stylish business partner.

02

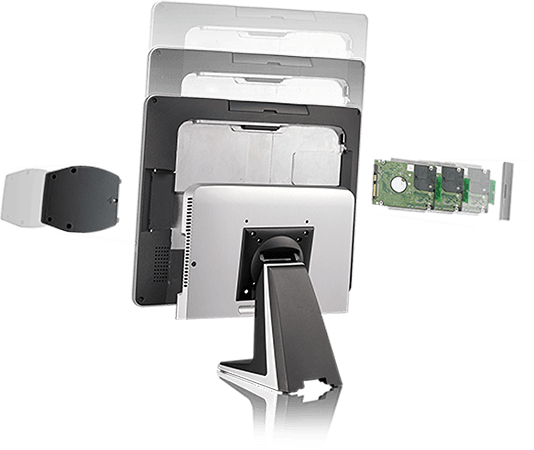

Innovative Modular Design

PP-9645 is the world’s 1st modular All-in-One POS system. Panel, CPU, HDD, add-on device are all simply swappable without complicated procedures.

The design is incredibly easy to understand with, it makes service and upgrade very efficient and flexible.

03

Press Then Slide

With enhanced FEC' s signature modular design, only 2 steps are needed to start maintaining, changing, assembling. and upgrading.

Things are just easy and smooth!

proimages/product-detail/05-Panel_PC/PP-9645/PP-9645_fea4.png
04

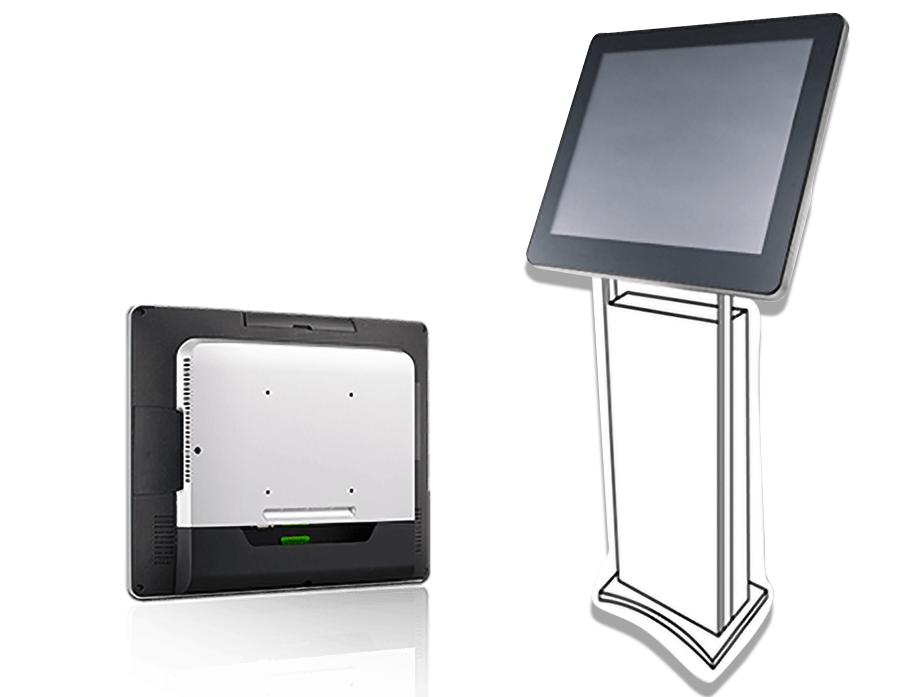

KIOSK Transformation

PP-9645 can be easily transformed to various size of KIOSK.

Where different KIOSK requirements are, applicable solutions will be given by transforming.

05

Add-On Device

There are multiple add-on devices available for PP-9645. FEC provides single function devices such as MSR reader, iButton reader, fingerprint reader and RFID reader. There are also 2-in-1 devices that combine MSR reader with an iButton, fingerprint, or RFID reader.

06

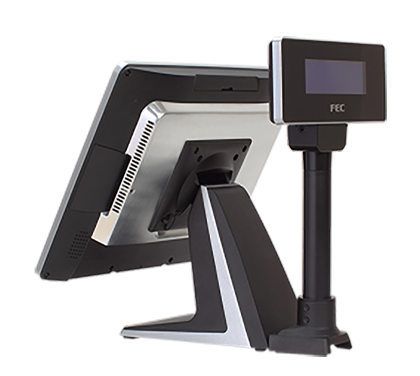

Customer Display & 2nd Screen

Customer Display (LCM / VFD) allows for easy programming with escape sequence commands and features adjustable display height, display swivel and tilt.LCD 2nd screen shows the latest store promotion and relevant information. Let’s enhance the customer experience by showing something extra!

LCM Type

VFD Type

LCD 2nd Screen

07

Intel. Experience What's Inside

  • 4th Gen Intel® Core™ i3 and i5 Processors
  • Intel® H81 Chipset (Intel® DH82H81 PCH)

Intel and Intel. Experience What’s Inside are trademarks of Intel Corporation in the U.S. and/or other countries.

Specifications

CPU
CPU
  • Intel® Celeron G1820TE 2.20GHz
  • Intel® Core i3-4330TE 2.40 GHz
  • Intel® Core i5-4590T 2.0 GHz
Memory
Memory
  • 2GB Standard, Max: 16GB (2 x So-DIMM DDR3L)
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
  • 1 x M.2 Storage Device (Optional)
Connection
Connection
  • WIFI 802.11 b/g/n (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 15” TFT, 1024 x 768
Touch
Touch
  • 5-Wire Resistive
  • True-Flat PCAP
Brightness
Brightness
  • 350 nits
MTBF
MTBF
  • 50K Hours
Power
Power
  • 12V / 150W External Adapter
OS
OS
  • Windows 10 IOT
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-Casting + Sheet Metal + Plastic
  • Black housing (PP-9645A)
  • Black with Silver Trim housing (PP-9645B/C)
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product 364 x 329 x 210 mm
  • Carton: 477 x 508 x 307 mm
Weight
Weight
  • Net: 6. 8 Kg
  • Gross: 10 Kg
Port
Port
  • 1 x RJ 45 (COM1) RS232 with RI/5V/12V Selectable
  • 4 x USB Type A (2 x USB 2.0, 2 x USB 3.0)
  • 1 x PUSB 24V
  • 1 x RJ11 Cash Drawer (12V / 24V)
  • 1 x RJ45 GigaLAN
  • 1 x VGA; 1 x Video Port
  • 1 x 12V DC Input
  • 1 x 12V DC Jack 2.5 mm Output

  • Side I/O Interface:
    1 x USB 2.0 Type A
Optional
Optional
  • Type C: 2 x RJ45 (COM 2 & COM 3) RS232 with RI / 5V / 12V Selectable; 1 x PUSB 12V
  • Type G: 3 x PUSB 12V
  • Type K: 1 x RB9 (COM 2) with RI / 5V / 12V Selectable; 2 x PUSB 12V
