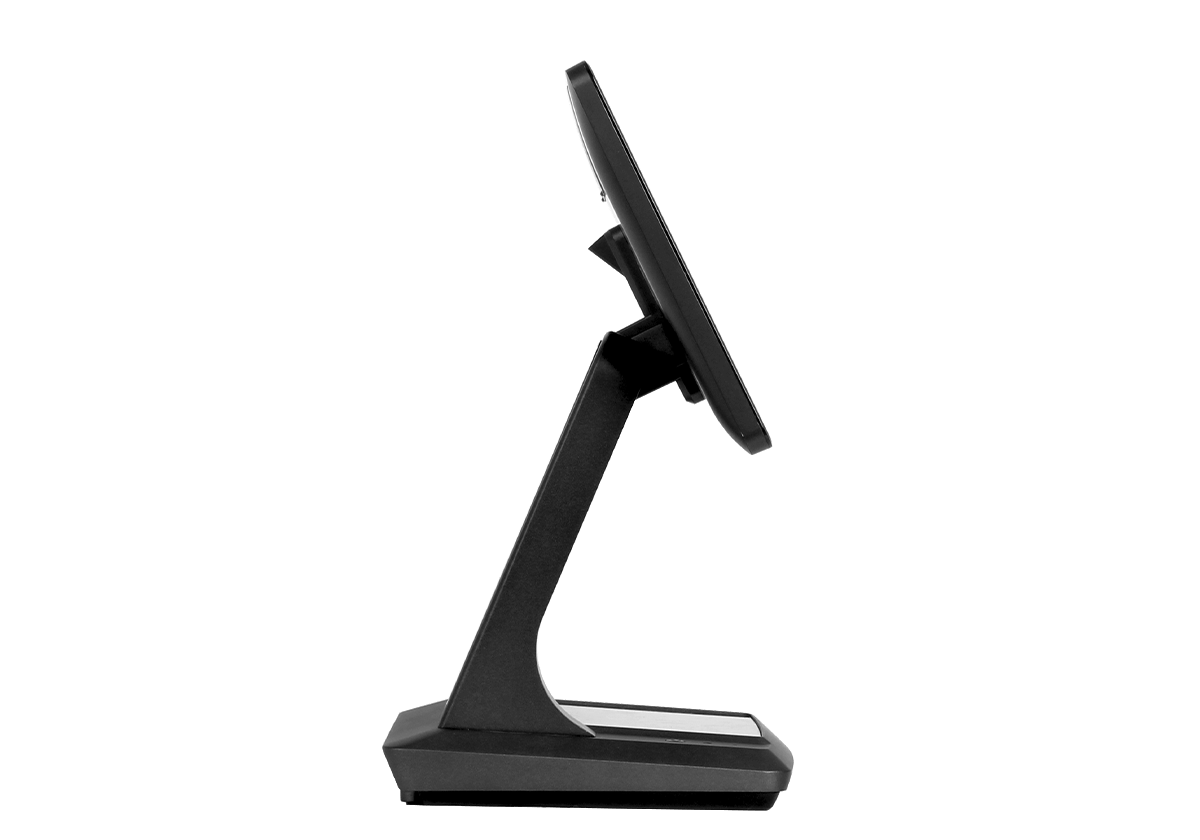

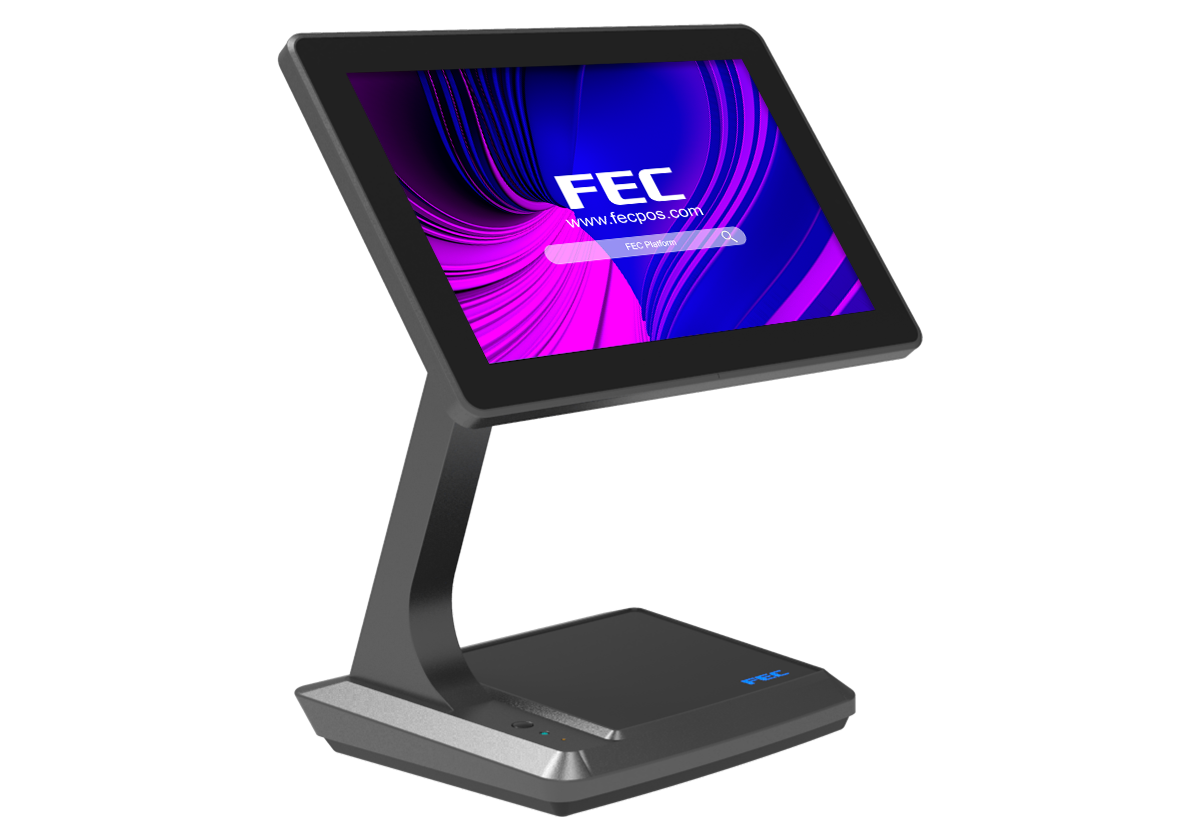

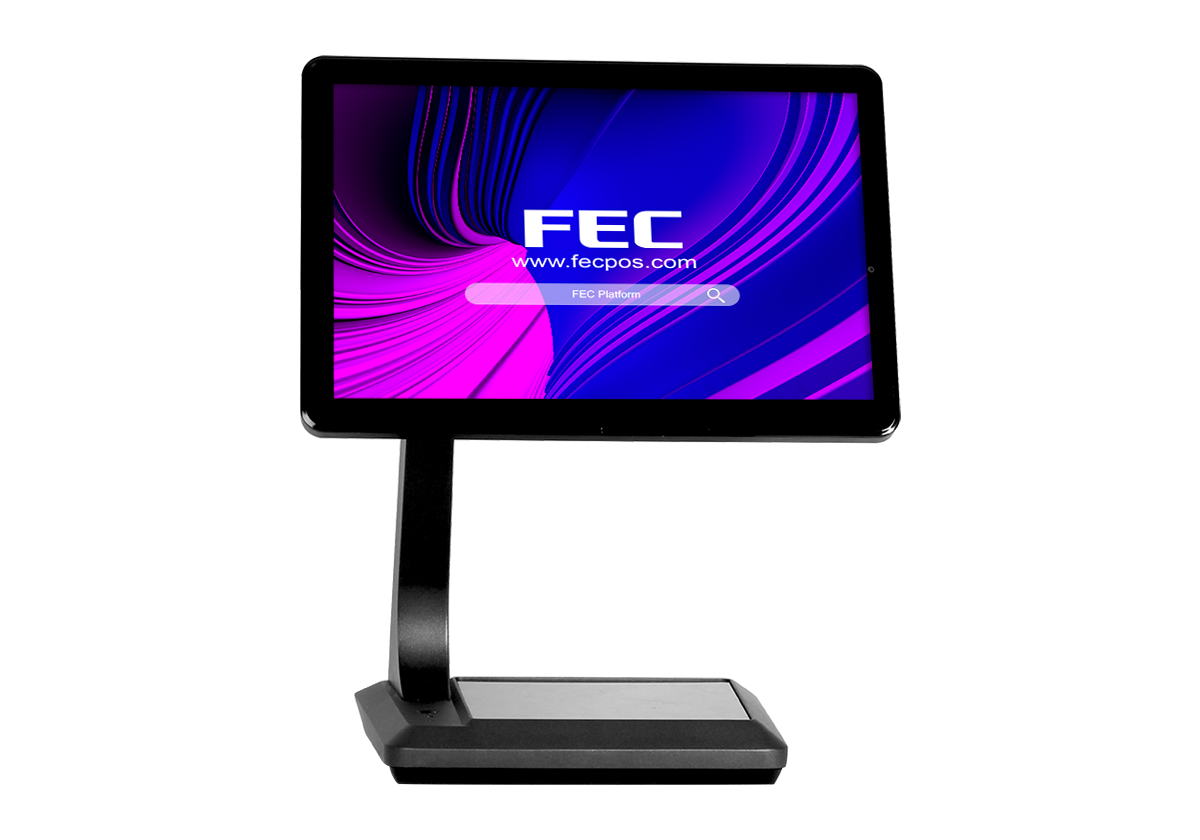

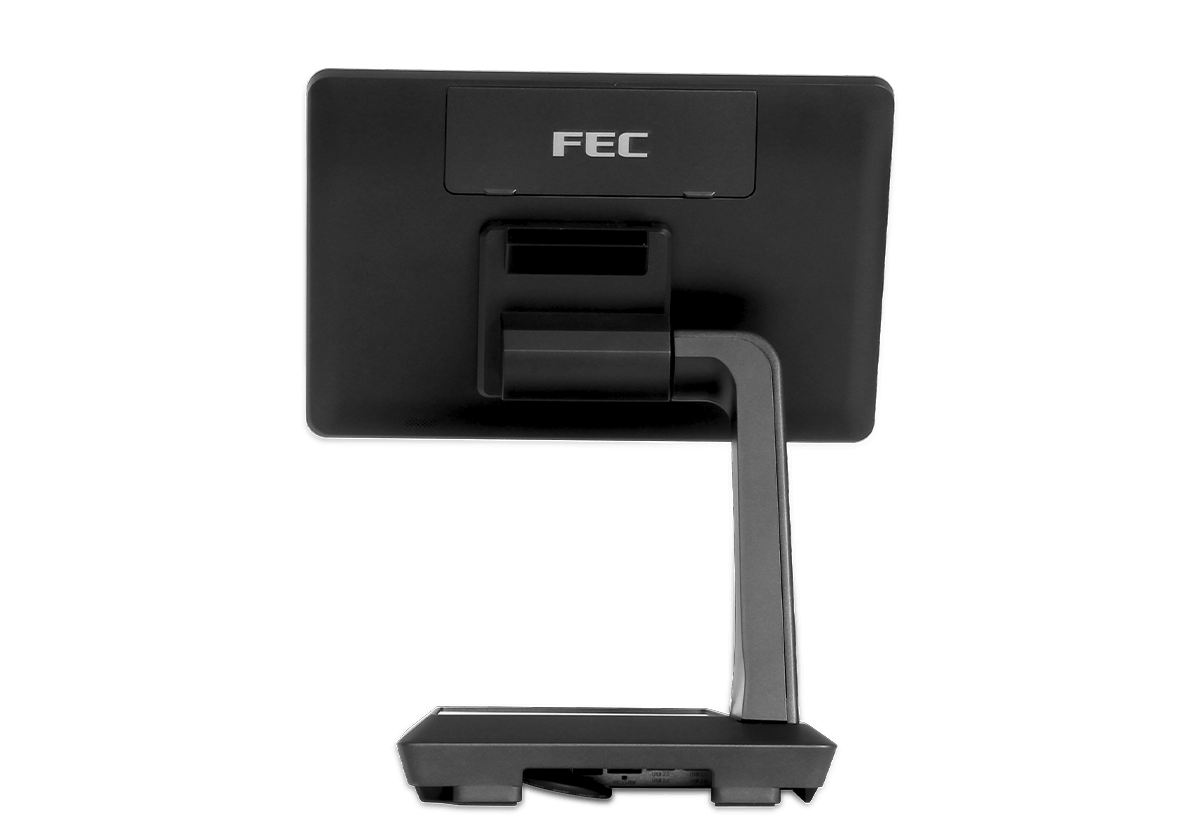

ST-1130W
Product Introduction
01
Versatility in a Small package
Our compact POS solution can instantly transform to a customer display with a flip of the screen providing convenience and valuable space.
02
Smart Terminal Smart Choice
Easy to make a payment thru QR Code, or with build-in Camera to scan.
03
Smart POS for Small Shops
Quickly get your small business up and running with our compact All-in-one POS Solution.
04
Smart Quenue Management
Organize and facilitate store lines to keep your business flowing.
05
Information Collection
Expand Your Loyal Customer Base with ST-1120W.
06
Think, Play, and Save
Having fun with Smart Terminal, and save time in line for taking orders.
07
FEC ANDROID
FEC provides a complete series of Android POS. From 10" to 22" in for lightweight usage, wall-mount as digital display or with stand for different types of POS terminals.
Specifications
CPU
- Rockchip RK-3568 Quad-core Cortex-A55 up to 2.0GHz
Memory
- 4GB DDR4 On Board
Storage
- 64GB Built-in eMMC
Connection
- WIFI 802.11 ac/b/g/n & BT 4.2 (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 10.1” IPS , 1280 x 800
Touch
- True-Flat PCAP
Brightness/MTBF
- 350 nits
MTBF
- 25K Hours
Camera
- 2MP Front Camera (Optional)
Power
- 20V / 90W or 20V / 130W External Adapter
OS
- Android 12
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-casting + Plastic
- Galaxy Gray
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
- Product: 264 x 315 x 180 mm
- Carton: 458 x 547 x 305 mm
Weight
- Net: 3.8 Kg
- Gross: 4.7 Kg
Port
- 1 x 20V DC Input
- 1x RJ45 Gigabit LAN
- 1x Video Port
- 1x RJ11 Cash Drawer (12V or 24V)
- 1 x SD/TF Card Slot (Max: 128GB)
- 1x Recovery button
- 2 x USB 2.0 Type A , 1 x USB 3.0 Type A, 1 x USB 3.0 Type A (OTG)
- 2x RJ45 (COM1, COM2) RS232 (RI/5V/12V)
Optional
- Customer Display XP-2025
- TP-100 80mm Thermal Printer
