XM-1015
Product Introduction
01

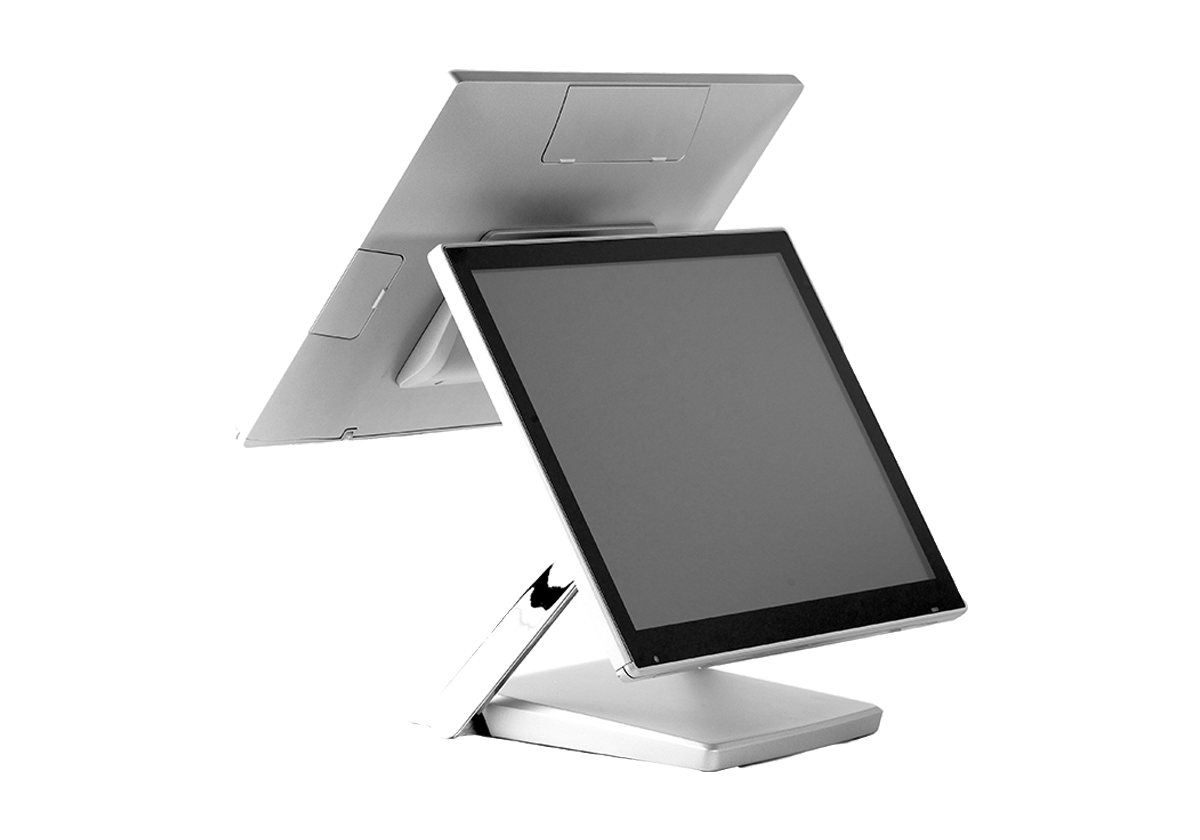

The artwork of the next generation

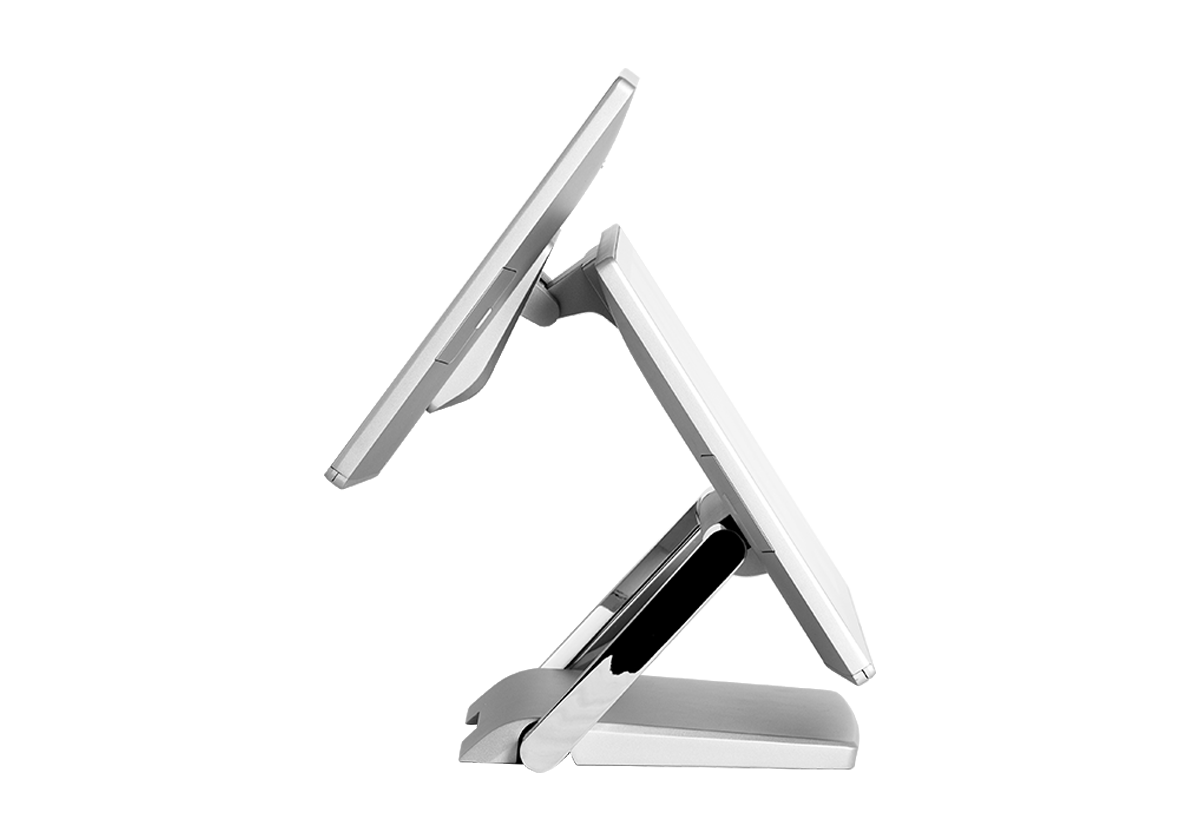

The flexible base for XPOS can be adjusted from 65 degree down to 15 degree and the display can be tilted 180 degree. Adjust your desired angle to enjoy its exquisite design.
02
Various Screen Size & Resolution
- Display 15"+8"
- Main Screen: 15" TFT LCD
1024x768 - Customer Screen: 8" TFT LCD
1024x600
- Display 15"+10"
- Main Screen: 15" TFT LCD
1024x768 - Customer Screen: 10" TFT LCD
1280x800
- Display 15"+15.6"
- Main Screen: 15" TFT LCD
1024x768 - Customer Screen: 15.6" TFT LCD
1920x1080
- Display 15"+15"
- Main Screen: 15" TFT LCD
1024x768 - Customer Screen: 15" TFT LCD
1024x768
03
Easy Docking Display
Optional LCM. 8in, 10in, 15in, or 15.6 in customer display can be docking on the top of the XPOS to present key transactional information or more.
Specifications
Display
- 15” TFT , 1024 x 768
Touch
- Non-Touch (Available for USB DP or FEC DP)
- True-Flat PCAP (Available for USB DP)
Brightness
- 400 nits
MTBF
- 50K Hours
Speaker
- 4ohm 2W (Available for USB DP)
Power
- 12V DC (Power From USB DP)
Mounting
- Docking (Available For USB DP or FEC DP)
- Extended (Available For USB DP)
- VESA 100 x 100 mm
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-casting + Plastic
- Galaxy Grey
- Silver
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Display Only: 273 x 343 x 24 mm
- Carton: 460 x 350 x 140 mm
Weight
- Display Only (Net): 4 Kg
- Display Only (Gross): 5 Kg
Port
- 1 x USB DP or FEC DP
