01

XP-3125 for your perfect fit

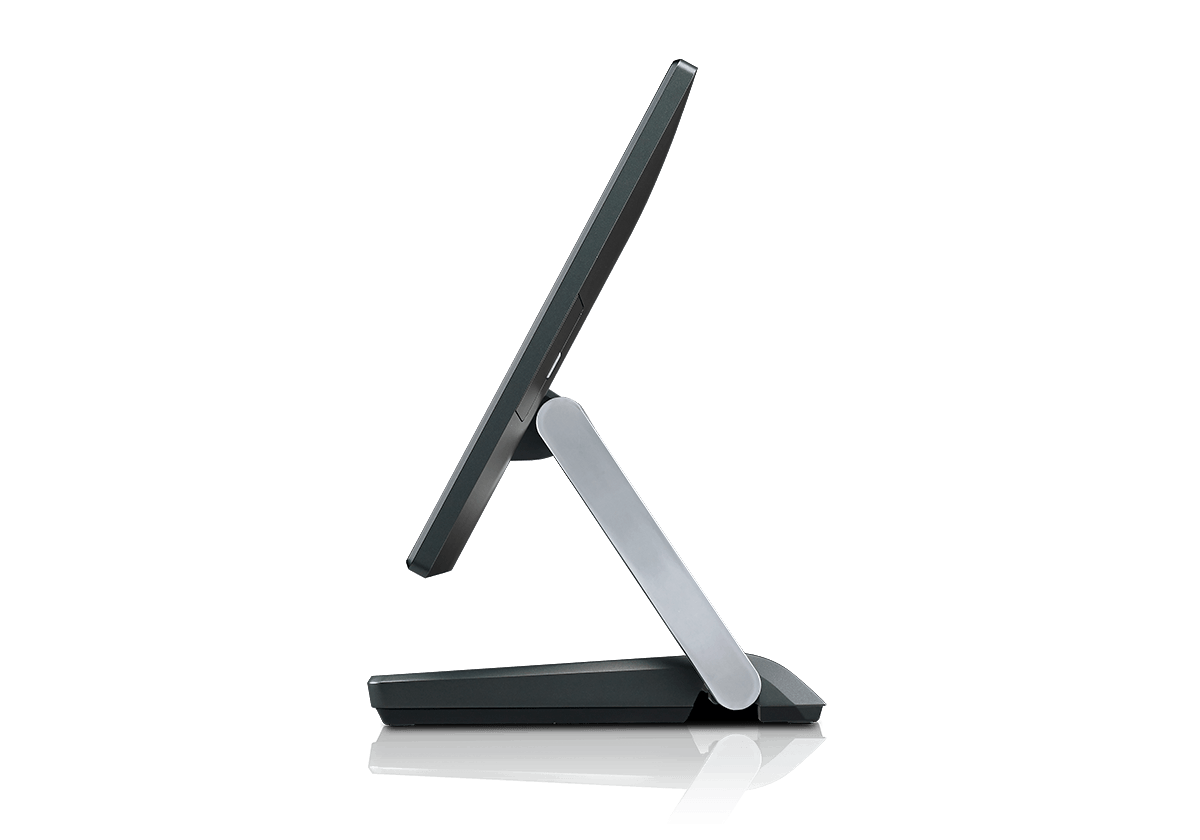

Dual-hinge to adjust your perfect angle for best viewing and access.

02

Experience about XPOS

XPOS is designed to be very slim and light weight. With its dual-hinge design. XPOS can be tilted to 180 degree flat to fulfil different applications.

03

Android Family

Specifications

CPU
CPU
  • RK-3288 Quad-core Cortex-A17 up to 1.6GHz
Memory
Memory
  • 2GB DDR3 On Board
Storage
Storage
  • 16GB Built-in eMMC
Connection
Connection
  • WIFI 802.11 ac & BT 4.2 (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 15.6" TFT, 1920 x 1080
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 400 nits
MTBF
MTBF
  • 50K Hours
Camera
Camera
  • 2MP Front Camera (Optional)
Power
Power
  • 20V / 90W External Power Adapter
OS
OS
  • Android 8.1 Oreo
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Galaxy Grey
  • Silver
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 368.2 x 293 x 231.74 mm
  • Carton: 492 x 168 x 488 mm
Weight
Weight
  • Net: 2.8 Kg
  • Gross: 3.2 Kg
Port
Port
  • 2 x RJ45 (COM1 & COM2)
  • 3 x USB 2.0 Type A , 1 x USB 3.0 Type A (OTG)
  • 1 x RJ11 Cash Drawer (12V or 24V)
  • 1 x RJ45 GigaLAN
  • 1 x Video Port
  • 1 x 20V DC Input
  • 1 x SD/TF Card Slot (Max: 64GB)
  • 1 x Recovery Button

  • Side I/O Interface:
    1 x USB 2.0 Type A
Optional
Optional
  • P Sensor & Light Sensor
