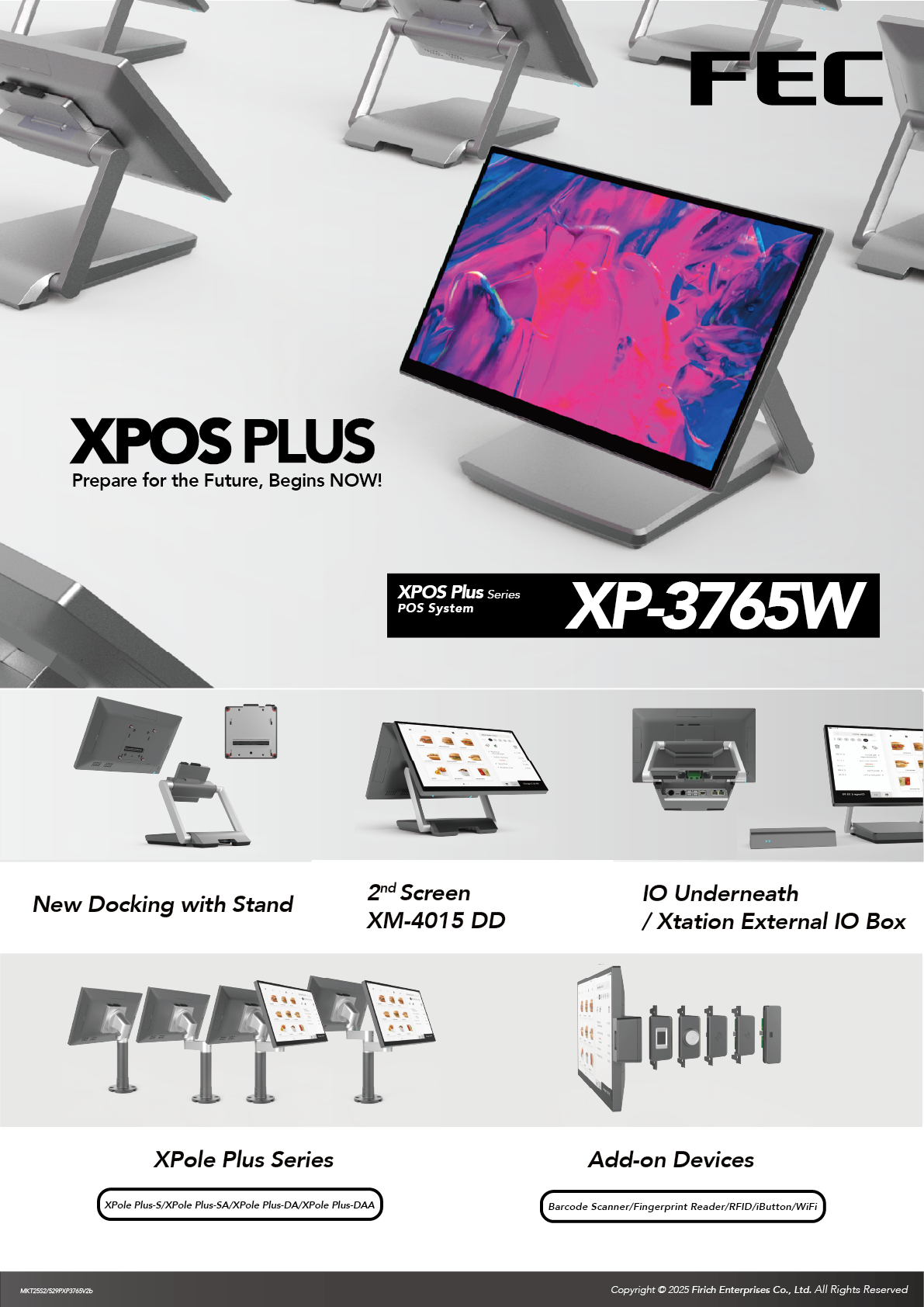

XP-3765W
Product Introduction

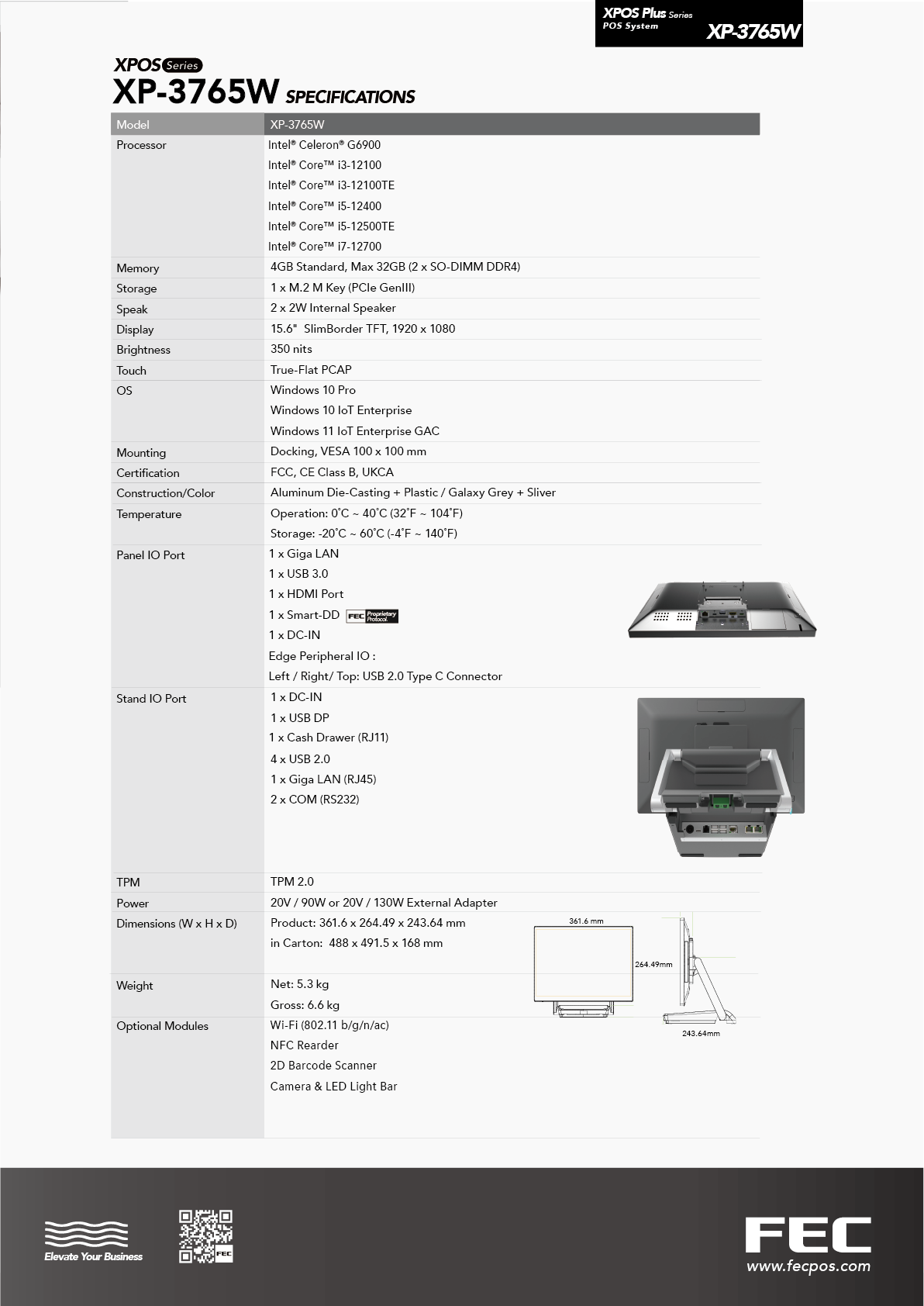

Specifications
CPU
- Intel® Celeron® G6900
- Intel® Core™ i3-12100
- Intel® Core™ i3-12100TE
- Intel® Core™ i5-12400
- Intel® Core™ i5-12500TE
- Intel® Core™ i7-12700
Memory
- 4/8/16/32GB (Max 32GB; 2 x SO-DIMM DDR4)
Storage
- 1 x M.2 M Key PCIe GenIII
Speaker
- 2 x 2W Internal Speaker
Display
- 15.6" Slim Border TFT, 1920 x 1080
Touch
- True-Flat PCAP
Brightness/MTBF
- 350 nits / 50K Hours
Power
- 20V 90W or 130W External Adapter (DC-Jack) or 20V 100W (USB-C)
OS
- Windows 10 IoT Enterprise
- Windows 11 IoT Enterprise
Certification
- FCC, CE Class B, UKCA
Appearance
- Aluminum Die-Casting + Plastic
- Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
- Product: 360 x 275 x 230 mm
- In Carton: 465 x 395 x 240 mm
Weight
- Net: 5.2 kg
- Gross: 6.5 kg

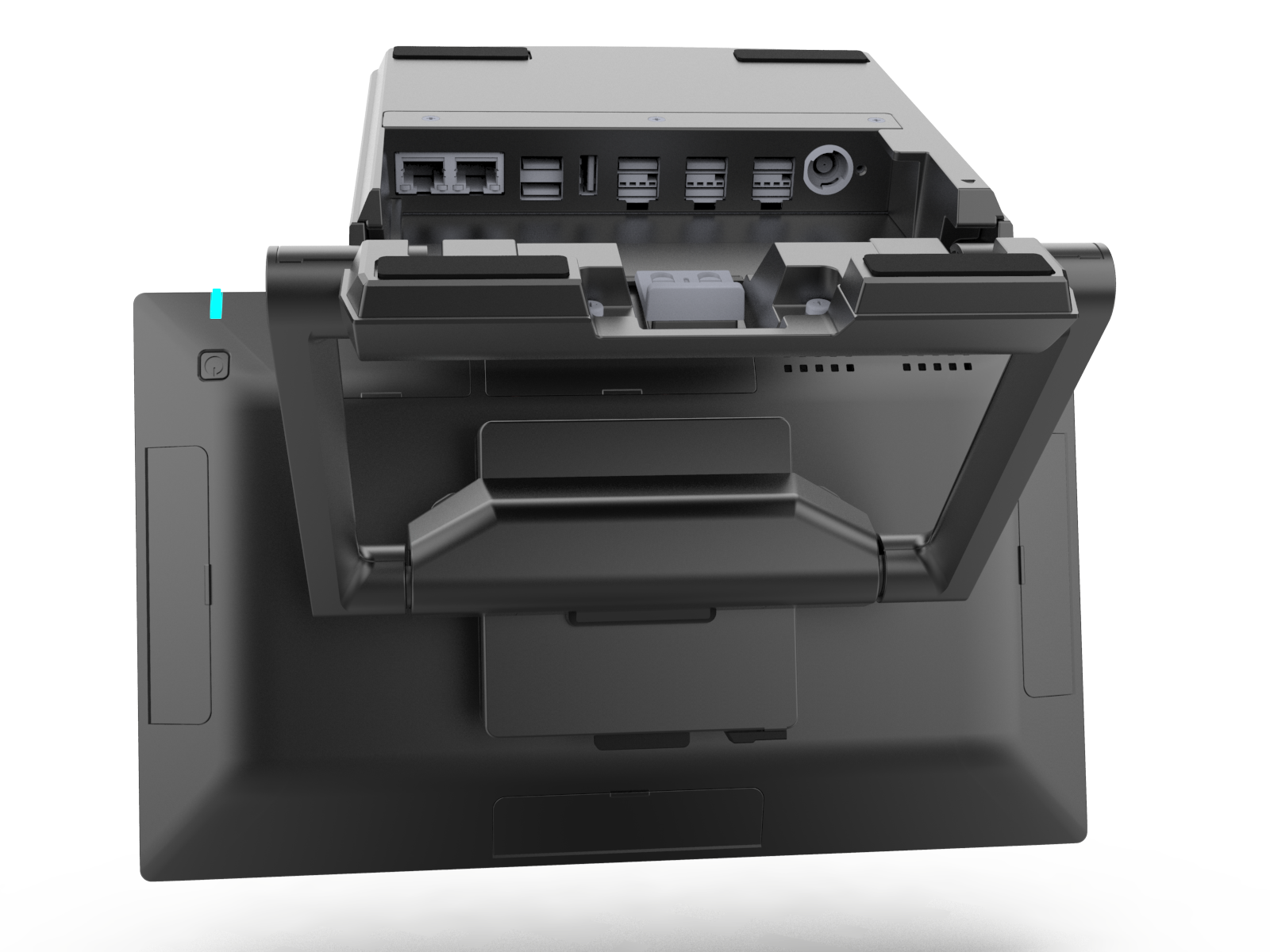

Port
- Default on PPC
1 x Giga LAN (RJ45)
1 x USB 3.0
1 x HDMI
1 x Smart-DD
1 x 100W USB-C PD (DC-IN)
Add-on Peripheral IO - Left / Right/ Top:
3 x USB 2.0 Type C Connector - Under Stand IO1:
- 2 x COM (RJ45, RS232)
4 x USB 2.0
1 x 10/100 LAN
1 x Cash Drawer (12V/24V)
1 x USB DP
1 x DC IN- IO1-24V:
1 x COM
6 x USB 2.0
1 x Giga LAN
1 x PUSB 24V
1 x DC-IN - XT-100C
2 x COM (RJ45)
4 x USB 2.0
1 x 10/100 LAN
1 x Cash Drawer (12V/24V)
1 x USB DP
1 x DC IN - XT-200C
3 x COM (RJ45)
4 x USB 2.0
1 x 10/100 LAN
1 x Cash Drawer (12V/24V)
1 x PUSB 24V
1 x USB DP
1 x DC-IN
2nd IO option for XT-200C
Type C: 1 x PUSB12V & 2 x COM (RJ45) or
* Type G: 3 x PUSB12V - XT-300C
1 x COM (RJ45)
6 x USB 2.0
1 x Giga LAN
1 x PUSB 24V
1 x DC-IN
Optional
- Side Add-on Module Options:
Wi-Fi+BT Module( Wi-Fi 802.11 b/g/n/ac +BT 4.2)
RFID Reader
Camera+LED Bar 2-in-1
2D Barcode Scanner
Other
- TPM 2.0: dTPM and fTPM
