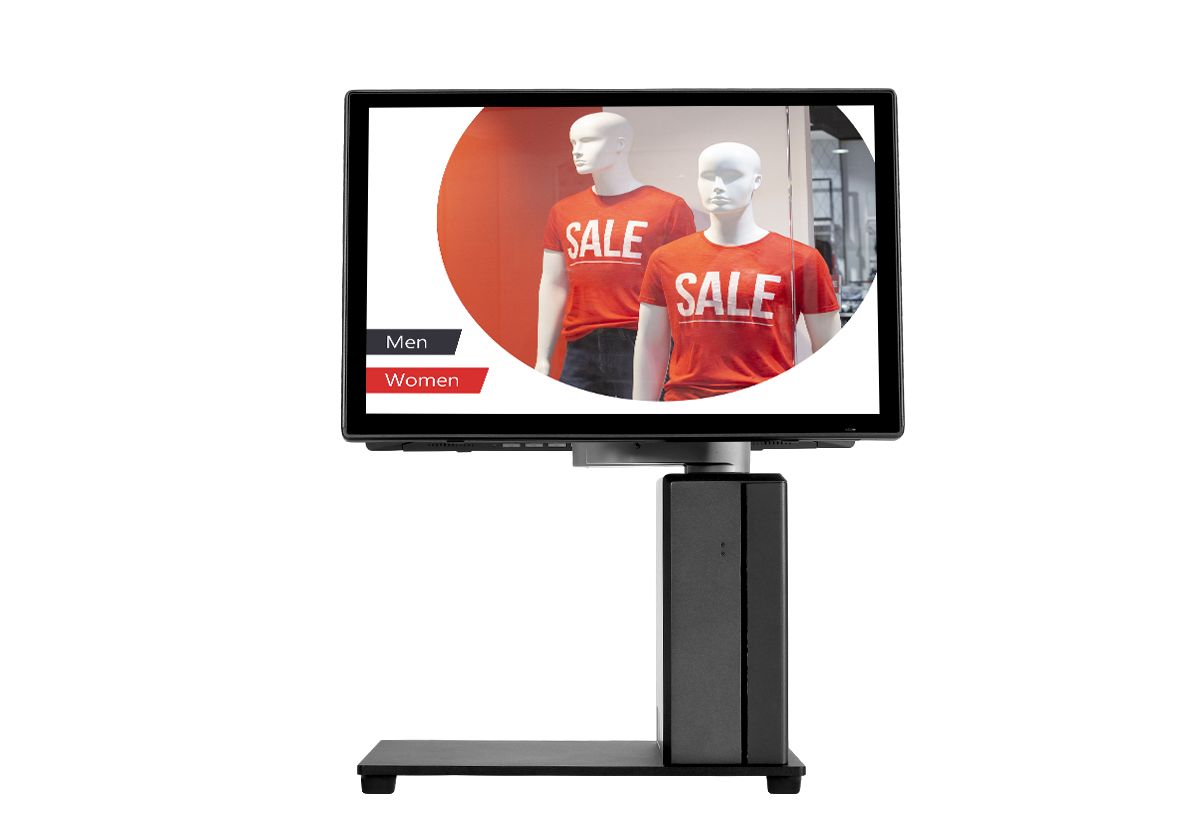

XP-4685W
Product Introduction
01
Intergration
XP-4000 is an intergration type to have the possibility to add accessories, like printer, keyboard, card reader, or scanner.
02

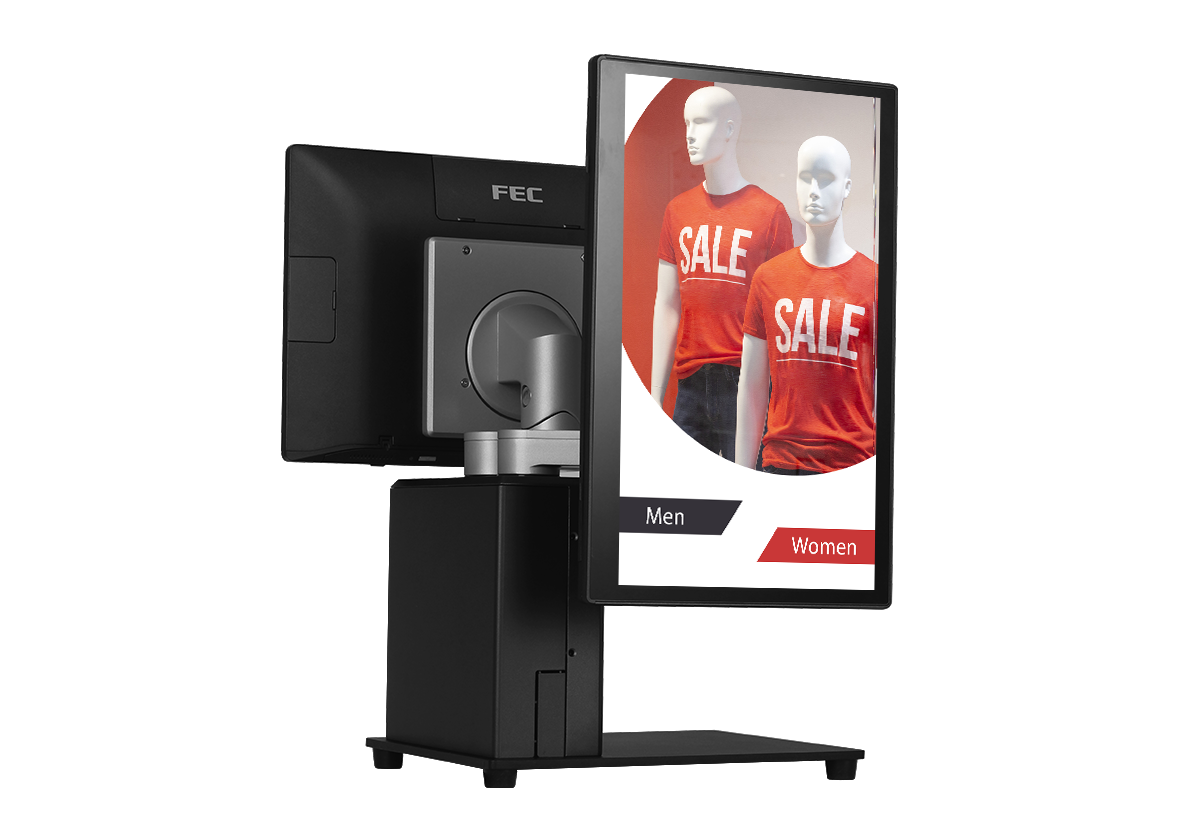

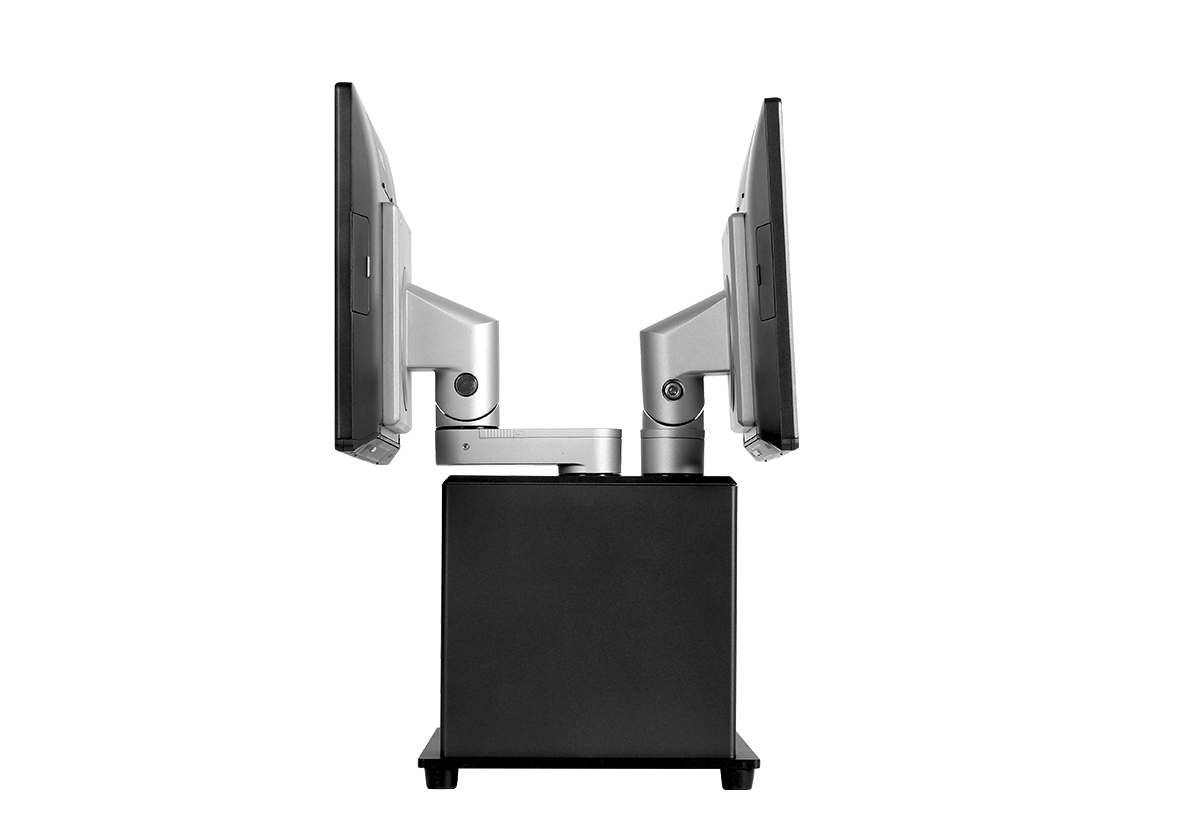

Various Configuration
03
Add Extra
Specifications
CPU
- Intel® Celeron® 3965U 2M Cache, 2.20 GHz
- Intel Core™ i3 7100U 3M Cache, 2.40 GHz
- Intel Core™ i5 7300U 3M Cache, up to 3.50 GHz
Memory
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
Storage
- 2 x M.2 M Key (SATA III or PCIe)
- *(Celeron® Supports Only One PCIe Storage Device )
Connection
- 2 x M.2 E Key 802.11ac + BT (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 15.6” TFT , 1920 x 1080
Touch
- True-Flat PCAP
Brightness/MTBF
- 400 nits
MTBF
- 50K Hours
Camera
- 2MP Front Camera (Optional)
Power
- 20V / 90W or 20V / 130W External Adapter
OS
- Windows 10 Pro
- Windows 10 IoT Enterprise
Mounting
- VESA 100 x 100 mm
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-casting + Plastic
- Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Product: 368.2 x 500 x 208 mm
Weight
- Net: 12 Kg
- Gross: 15 Kg
Port
- 1 x USB 3.0 Type A
- 1 x USB 2.0 Type A (Reserved for Add-On)
- 1 x USB DP (Reserved for 2nd Display)
- 1 x Smart DP ( Reserved for Customer Display or 2nd Display)
Optional
- 2nd I/O Type C: 1 x PUSB 12V, 2 x RJ45 (COM6, COM7) RS232
- 2nd I/O Type G: 3 x PUSB 12V
I/O on Base
- 3 x RJ45 (COM3, COM4, COM5) RS232
- 4 x USB 2.0 Type A
- 1 x USB DP (2nd Display)
- 1 x RJ11 (12V / 24V)
- 1 x RJ45 LAN
- 1 x 20V DC-in
- 1 x 24V Powered USB
- 1 x Audio Line-Out or 12V DC-out (Optional)
