Xelf (Kiosk III)
Product Introduction
01
Self Service, Optimize queuing and improve efficiency
Scan
Print
Payment
Counter
02
15 | 15.6 | 17 | 22
Four Sizes & resolutions
to fulfill different needs
03

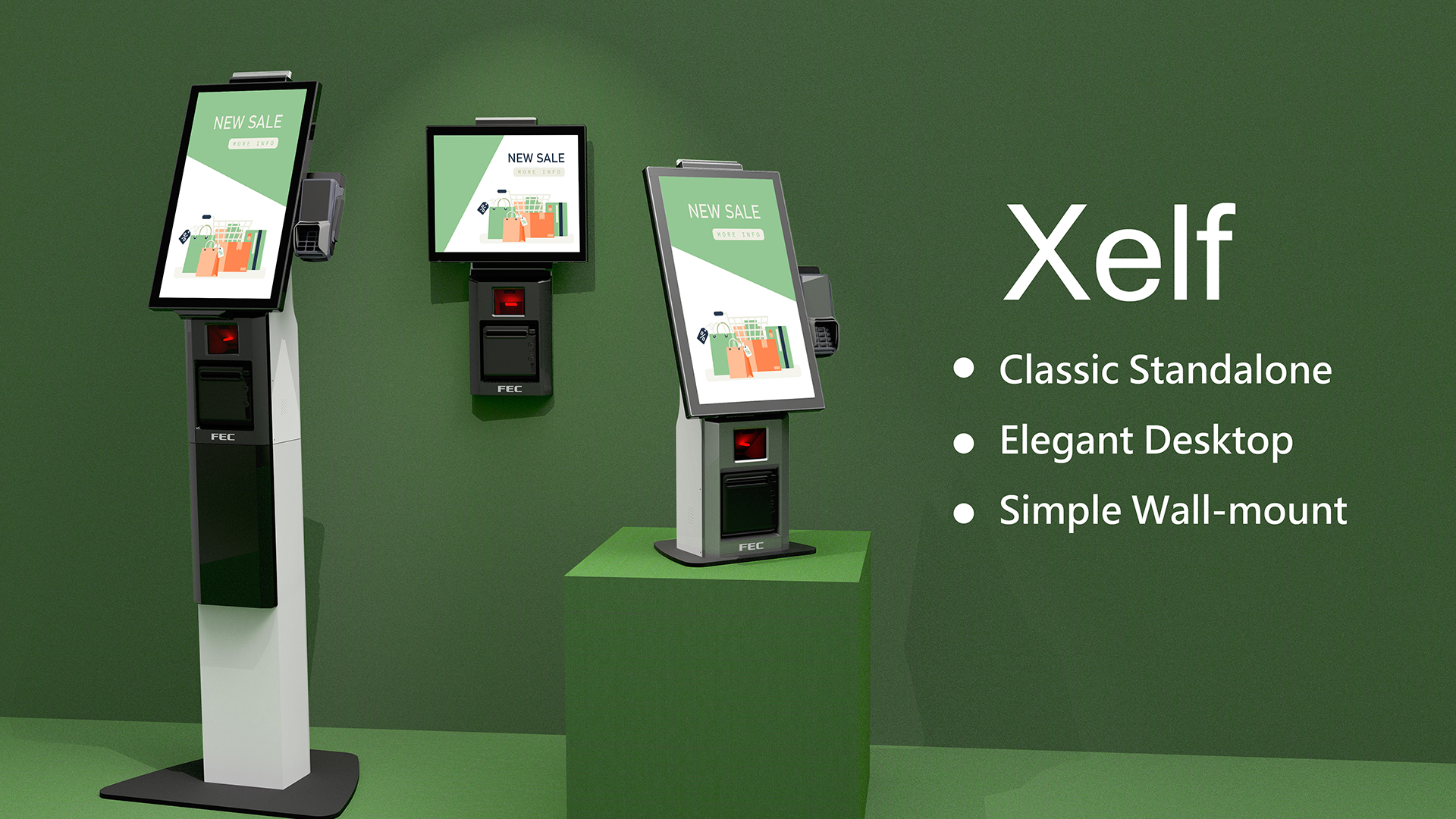

Xelf
● Classic Standalone
● Elegant Desktop
● Simple Wall-mount
04
Self-Checkout
Fast, efficient checkout to improve your customer's experience and your bottom line.
05
Self-Ordering
Expand your in-store aisles or your menu boards to expand your sales.
06
Expandable Service
Device flexibility, expand your kiosk capabilities through additional devices.
Specifications
Display
- XPOS version: 15”/15.6”/17”/22”
- XPPC version: 15.6”/22”
CPU
- XPOS version:
- Intel® Celeron® 3965U 2M Cache, 2.20 GHz
- Intel Core™ i3 7100U 3M Cache, 2.40 GHz
- Intel Core™ i5 7300U 3M Cache, up to 3.50 GHz
- XPPC version:
- Intel® Core™ i3-12100 12M Cache, up to 4.30 GHz
- Intel® Core™ i3-12100TE 12M Cache, up to 4.00 GHz
- Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz
- Intel® Core™ i5-12500TE 18M Cache, up to 4.30 GHz
- Intel® Core™ i7-12700 25M Cache, up to 4.90 GHz (By Project)
OS
- Windows
- Android
Mounting
- Desktop
- Wallmount
- Standalone
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-Casting + Plastic
- Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Product: 300 x 780 x 270 mm (22" Desktop version)
- Product: 570 x 1545 x 390 mm (22" Standalone version)
Optional
- Honeywell CF3680
- Green&Red Led Status LED indicator
- 2MP Camera
- Additional 5W USB Speaker x 2
- Support printer: FEC TP-100, Epson M30, Seiko D10
