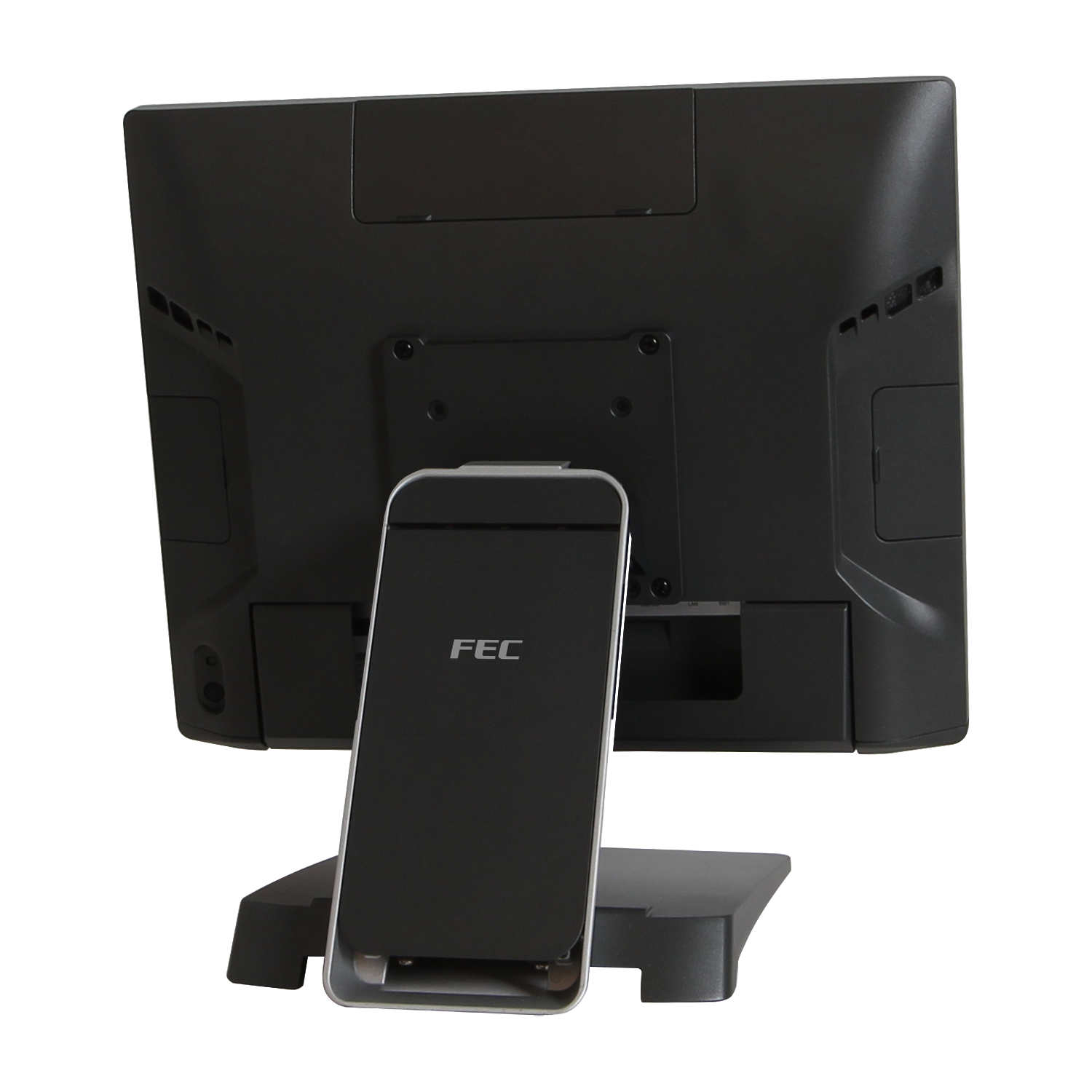

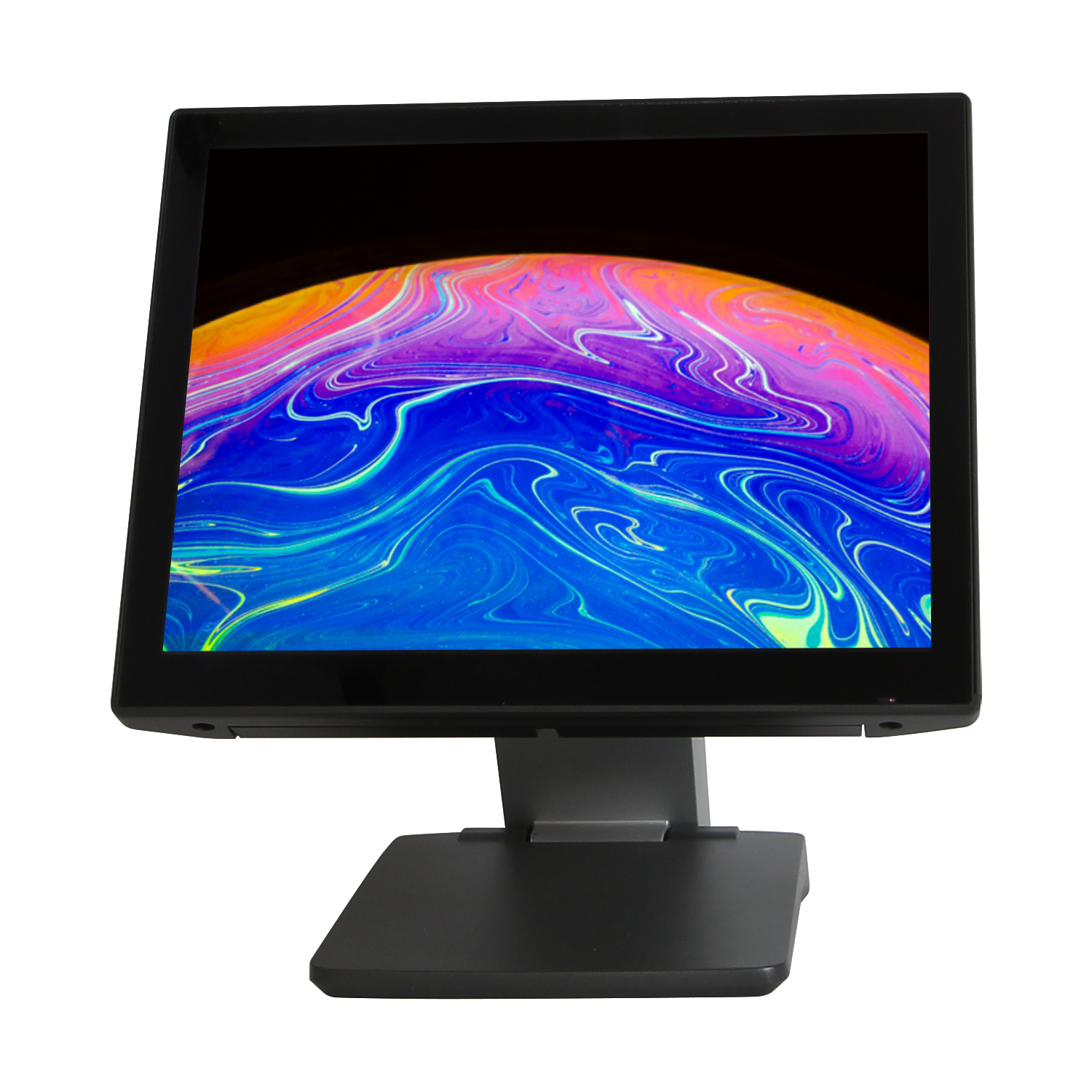

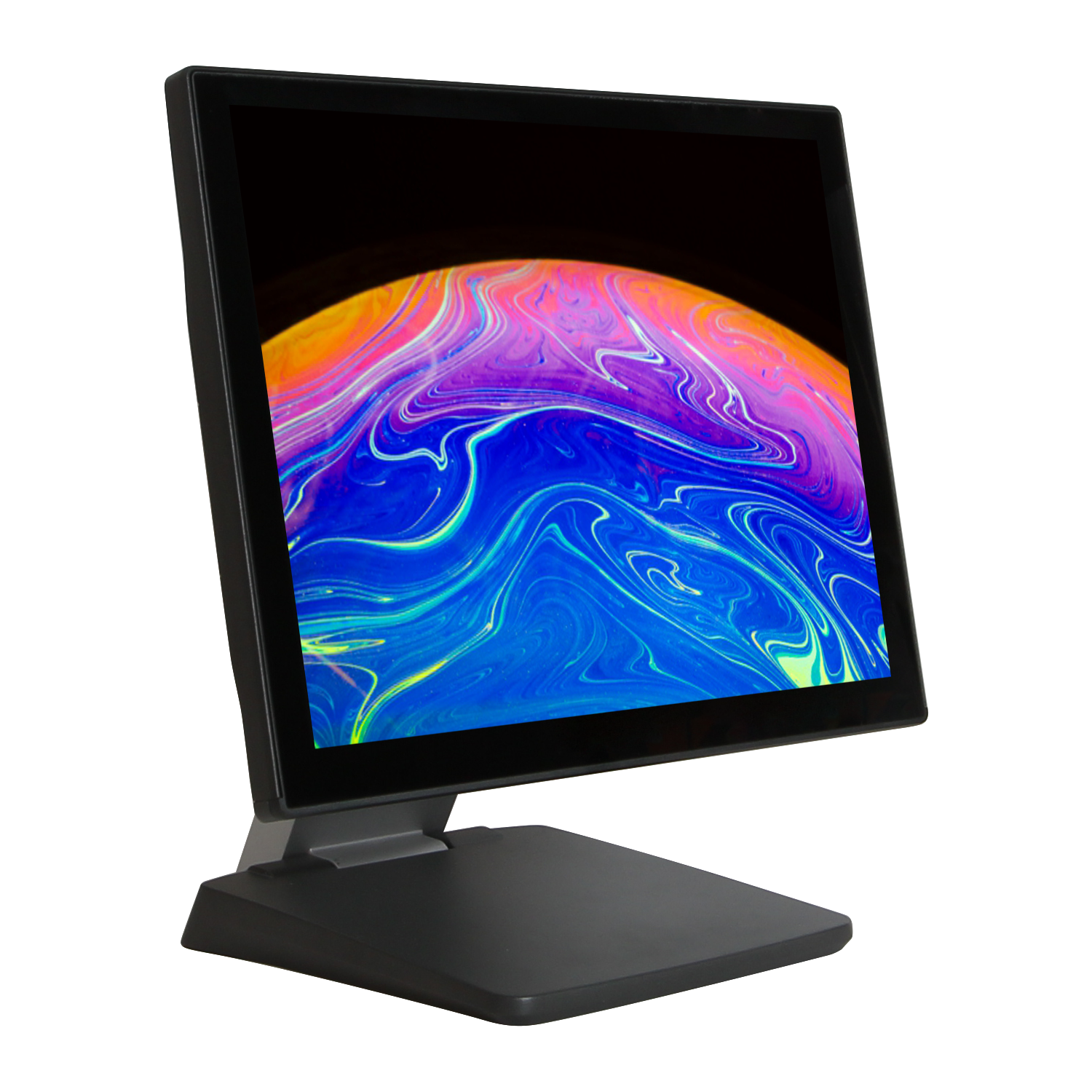

PP-9735
產品介紹
01
ECO-FRIENDLY
Reduce the size and package to save the environment and for easier transportation
02
WITH PAYMENT EFT / SCANNER
Two ways for add-on device settlement.
Arm type Barcode Scanner
Payment Device
RFID Device
03
2nd Display
Arm / Pole Type for different countertop
04
S E N S O R
Ambient light sensor allows system automatically adjust the brightness of the screen according to the environment.
05
Processor J6412
Fanless CPU For Complex solution.
規格
處理器
- Intel® Celeron® J6412 1.5M Cache, 2.60GHz
記憶體
- 4GB Standard, Max 32GB (1 x So-DIMM DDR4)
儲存裝置
- 1 x M.2 M Key (SATA III or PCIe)
無線裝置
- 1 x M.2 E Key 802.11ac + BT4 (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器
- 15" TFT, 1024 x 768
觸控
- True-Flat PCAP
亮度
- 350 nits
像機
- 2MP Front Camera (Optional)
電源供應
- 20V / 90W or 130W External Adapter
作業系統
- Windows 10 Enterprise (LTSC, SAC)
- Windows 11 IoT Enterprise (Est. available in Q3 2023)
- Linux
TPM
- TPM2.0: Intel PTT
壁掛
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Aluminum Die-Casting + Plastic
- Galaxy Grey + Silver
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
尺寸 (寬 x 高 x 深)
- Product: 342 x 310 x 342 mm
- Carton: 492 x 168 x 488 mm
重量
- Net 3.42 KG,
- Gross 6.2 KG
連接埠
- 1 x RJ11 (12V / 24V) Cash Drawer
- 2 x RJ45 (COM1, COM2) RS232
- 4 x USB Type A ( 3 x USB 2.0, 1 x USB 3.0)
- 1 x RJ45 GigaLAN
- 1 x Video Port
- 1 x 20V DC-In
- 1 x Smart DD
- 1 x Smart I/O (Reserved for additional DC output 5V/12V/24V, USB, or Com ports)
選擇搭配
- Universal I/O (Select 1 from below)1 x PUSB 24V1 x PUSB 12V1 x RJ45 (COM) RS2322 x USB 2.0 TypeA
