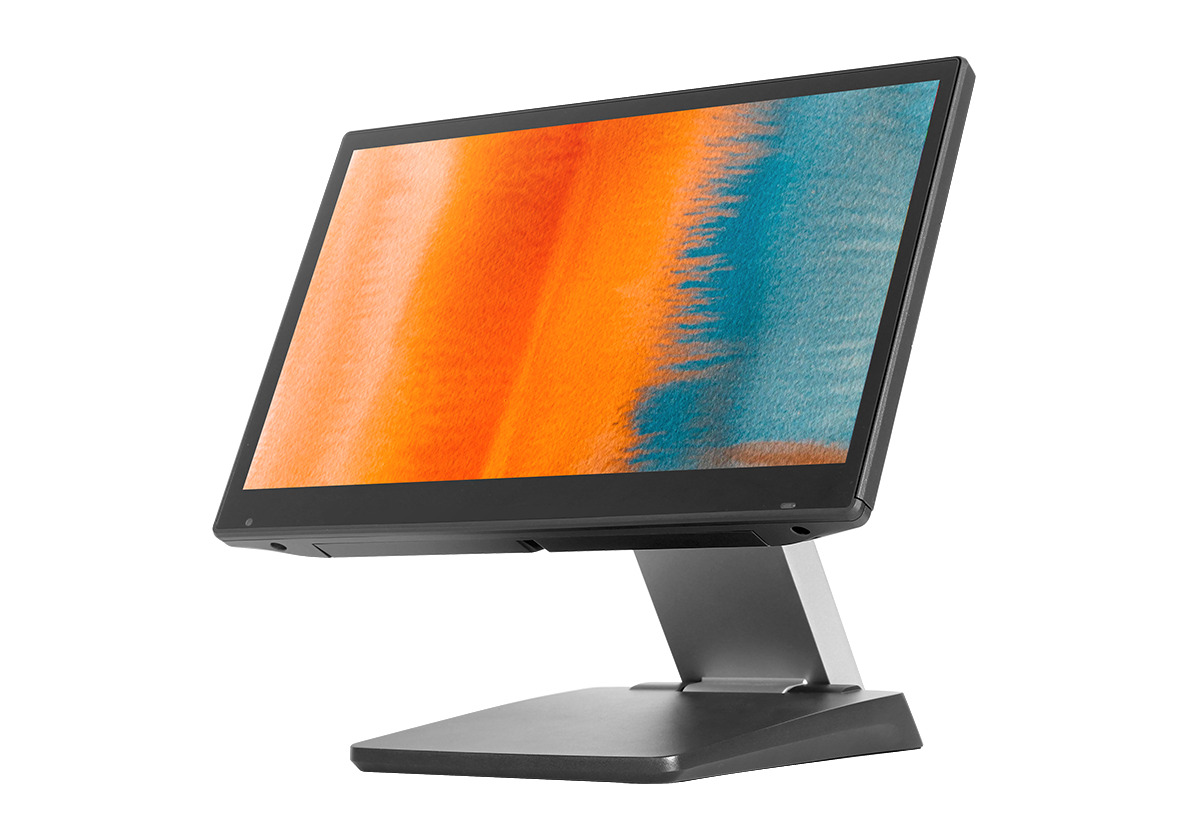

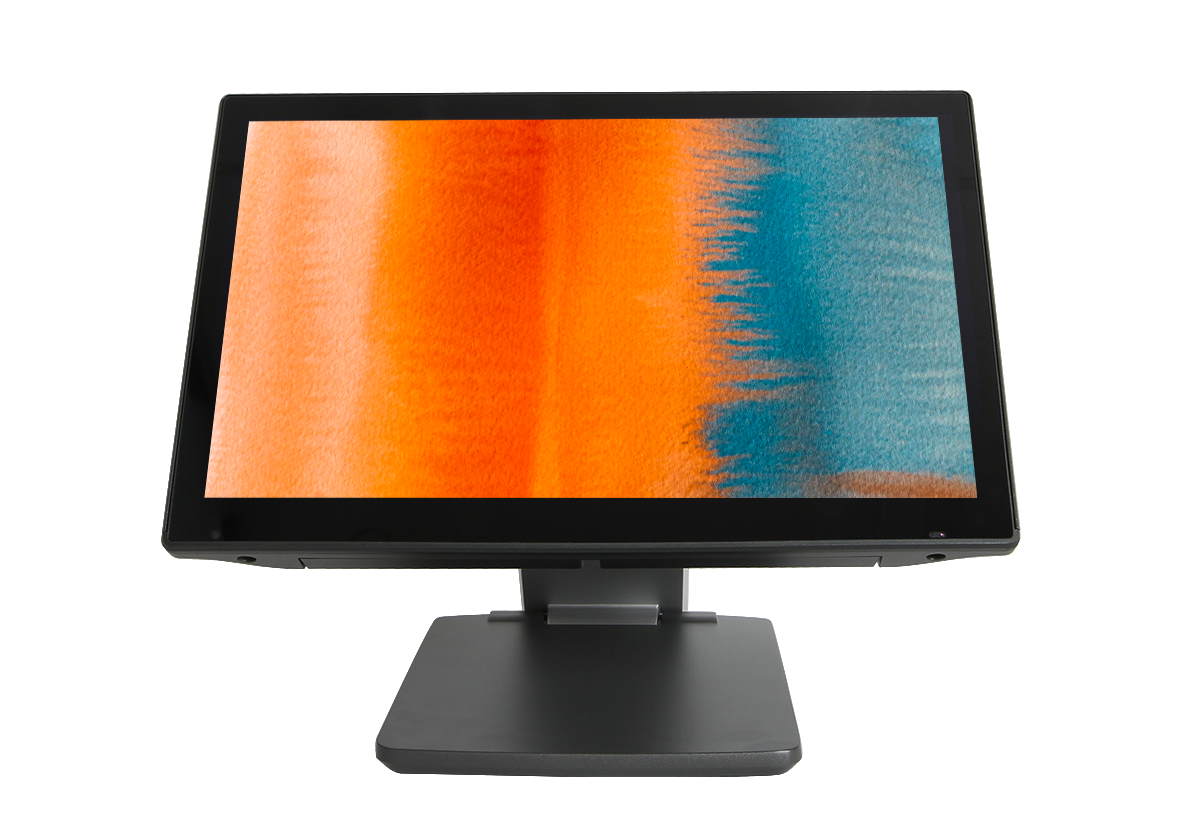

PP-9745W
產品介紹
01
ECO-FRIENDLY
Reduce the size and package to save the environment and for easier transportation
02
WITH PAYMENT EFT / SCANNER
Two ways for add-on device settlement.
Arm type Barcode Scanner
Payment Device
RFID Device
03
2nd Display

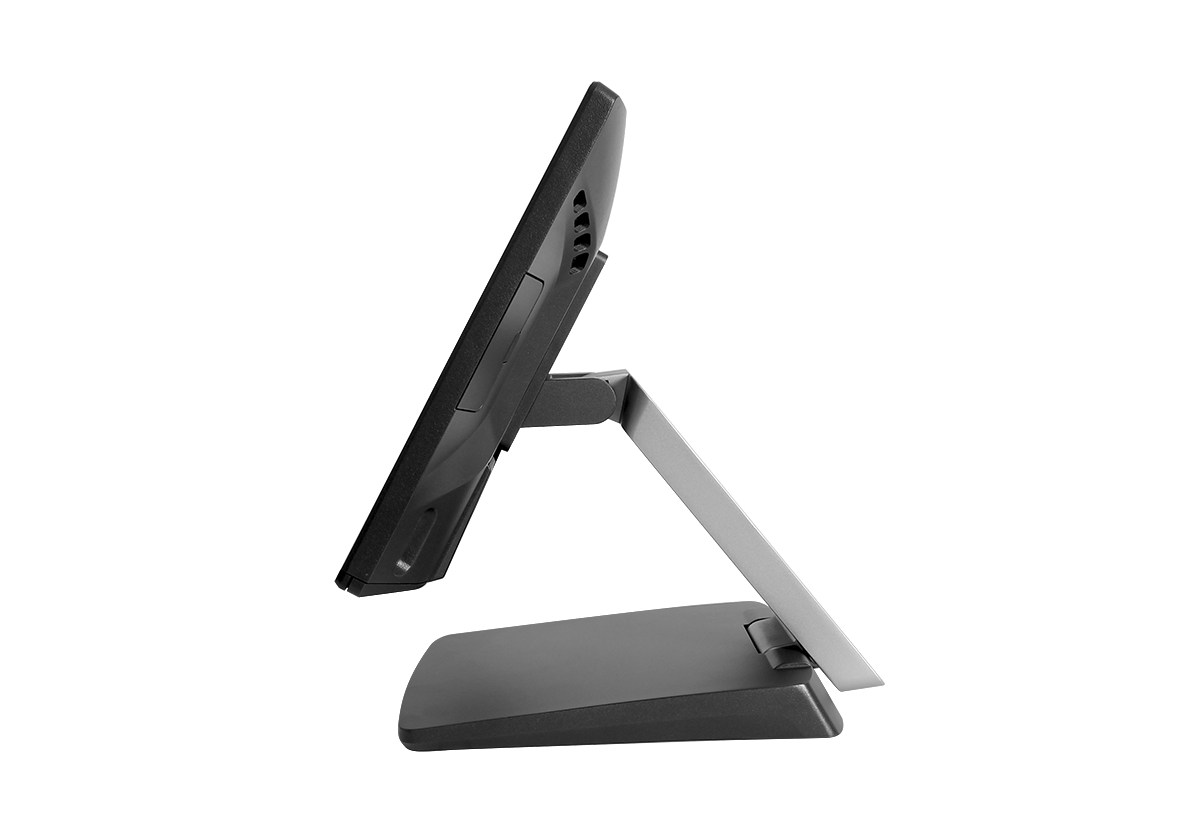

Arm / Pole Type for different countertop
04
S E N S O R
Ambient light sensor allows system automatically adjust the brightness of the screen according to the environment.
05
Alder LAKE
High Performance CPU For Complex solution.
06
A LITTLE EXTRA
Hidden adapter in base or customized I/O (by project).
規格
處理器
- Intel® Core™ i3-12100 12M Cache, up to 4.30 GHz
- Intel® Core™ i3-12100TE 12M Cache, up to 4.00 GHz
- Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz
- Intel® Core™ i5-12500TE 18M Cache, up to 4.30 GHz
- Intel® Core™ i7-12700 25M Cache, up to 4.90 GHz (By Project)
記憶體
- 4GB Standard, Max 32GB (1 x So-DIMM DDR4)
儲存裝置
- 1 x M.2 M Key (PCIe GenIII)
無線裝置
- 1 x M.2 E Key 802.11ac + BT4 (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器
- 15.6" TFT, 1920 x 1080
觸控
- True-Flat PCAP
亮度
- 300 nits
平均故障間隔時間
- 30K Hours
像機
- 2MP Front Camera (Optional)
電源供應
- 20V / 90W or 20V / 130W External Adapter
作業系統
- Windows 10 IoT Enterprise
- Windows 11 IoT Enterprise (Est. available in Q3 2023)
TPM
- TPM2.0: dTPM and Intel PTT
壁掛
- VESA 100 x 100
認證
- FCC / CE Class B
外觀
- Aluminum Die-Casting + Plastic
- Galaxy Grey
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
尺寸 (寬 x 高 x 深)
- Product: 368 x 272.5 x 315 mm
- Carton: 468x 156 x 448 mm
重量
- Net 3.9 kg
- Gross 4.9 kg
連接埠
- 3 x USB 3.0 Type A
- 1 x USB 2.0 Type A
- 1 x USB 2.0 Type A (Reserved for Add-On)
- 1 x Smart DP (Reserved for Customer Display (COM3) or 2nd Display)
- 2 x RJ45 (COM1, COM2)
- 1 x RJ45 LAN
- 1 x Smart DD
- 1 x Smart I/O (COM5)
- 1 x Video Port
- 1 x RJ11 (12V/24V)
選擇搭配
- Universal I/O (Select 1 from below) 1 x PUSB 24V (Default)1 x PUSB 12V2 x USB 2.0 Type A1 x RJ45 (COM4)
