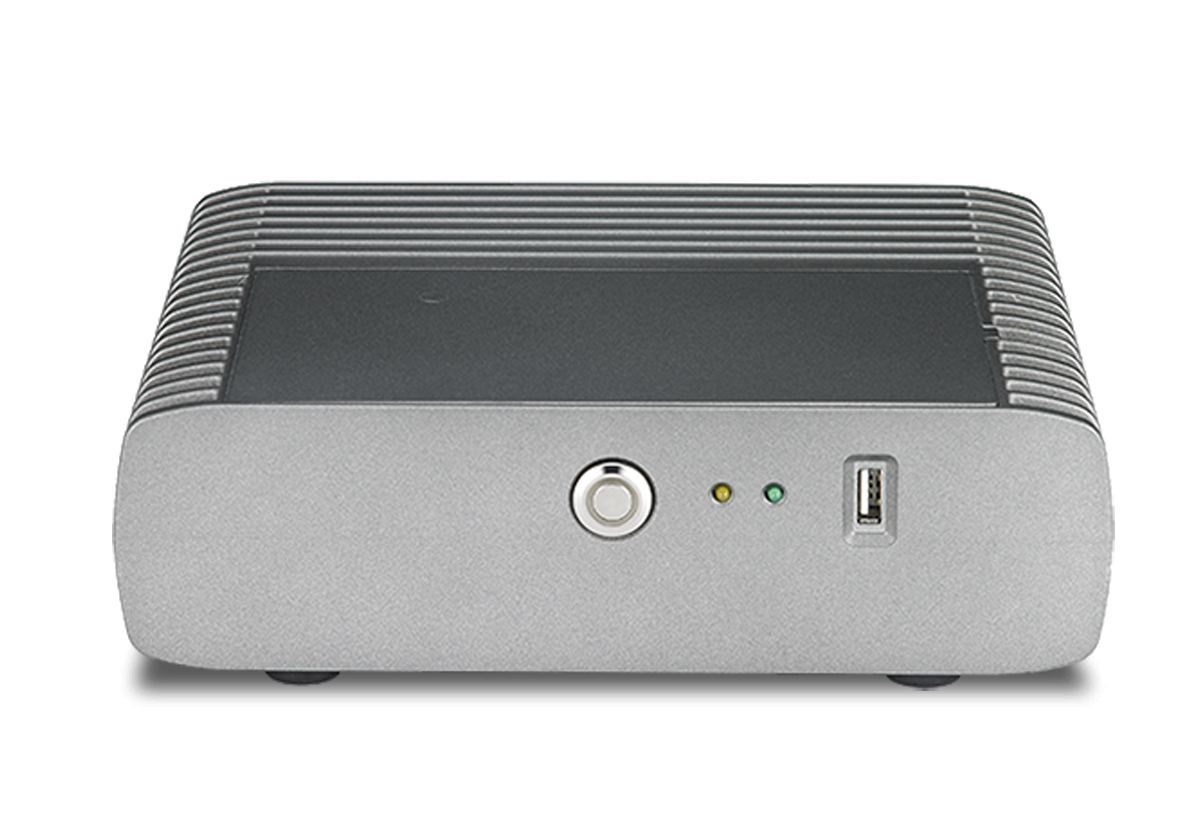

Featuring Intel Bay Trail, the BP-363 is the perfect Box System that works with your creativity on terminal placement. With numerous I/O options, never again worry about peripheral connectivity.

01

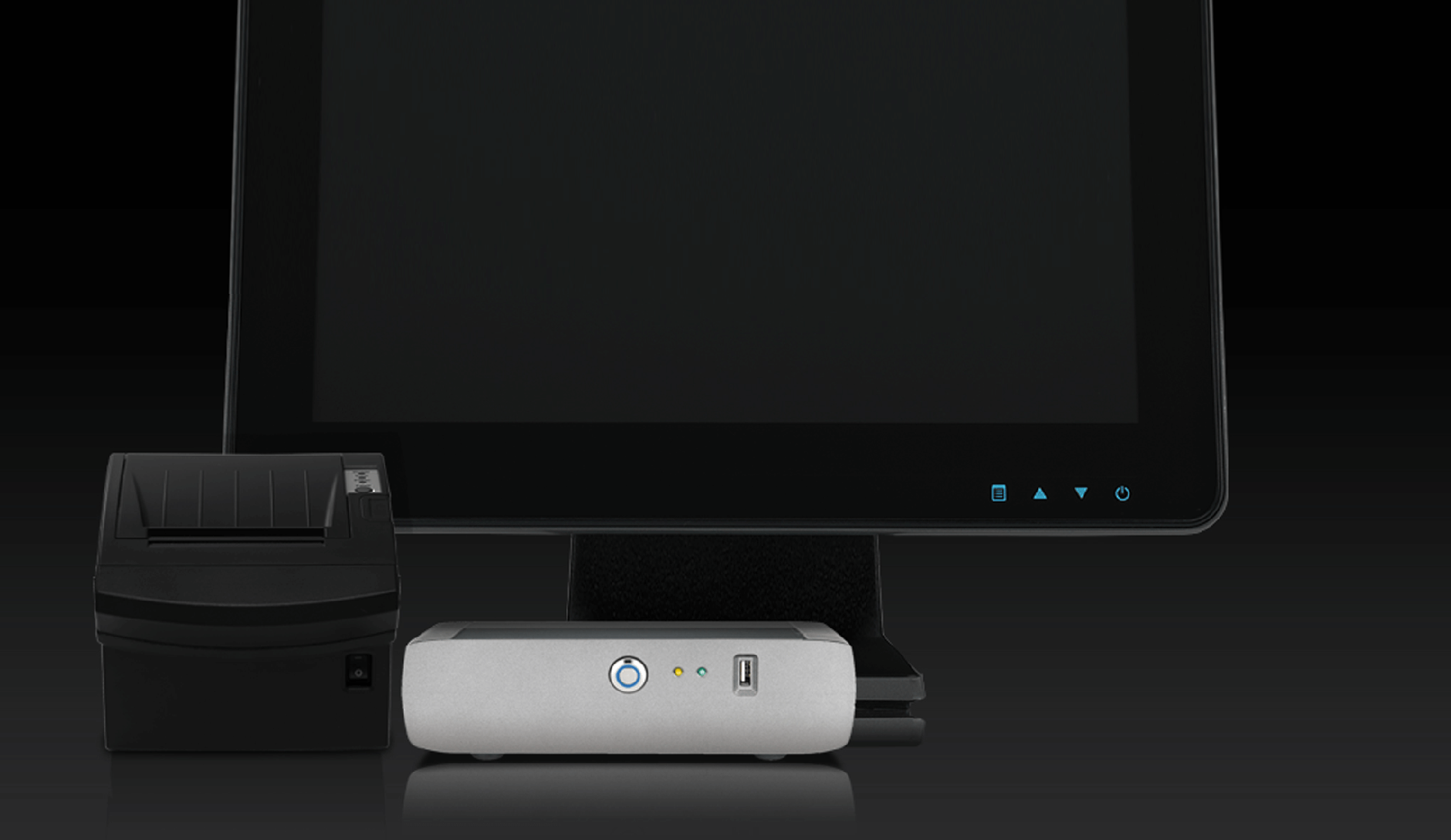

Compact Solution

BP-363 is an incredibly compact solution and can be combined with many different FEC products. We offer 4 different I/O setups in order to accommodate different point of sale solutions.

02

Mounting Kit

Combined with a FEC universal mounting kit, BP-363 can be mounted on any flat surface.

03

Easy Swap

One step access to the SATA HDD or SSD for easy serviceablilty.

04

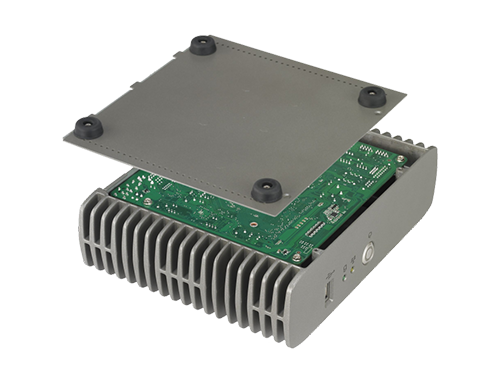

Maintenance

The motherboard is easily accessible for efficient upgrades or maintenance.

Specifications

CPU
CPU
  • Intel® Celeron J1900 2M Cache, up to 2.42 GHz
Memory
Memory
  • 4GB Standard, Max 8GB (1 x So-DIMM DDR3)
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
Power
Power
  • 12V / 150W External Adaptor
OS
OS
  • POSReady 7
  • POSReady 2009
  • Windows 10 Pro
  • Windows 10 IoT Enterprise
Certification
Certification
  • FCC / CE Class B
Construction/Color
Construction/Color
  • Silver
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 230.24 x 65 x 190.04 mm
  • Carton: 400 x 130 x 245 mm
Weight
Weight
  • Net: 2.4 Kg
  • Gross: 3.5 Kg

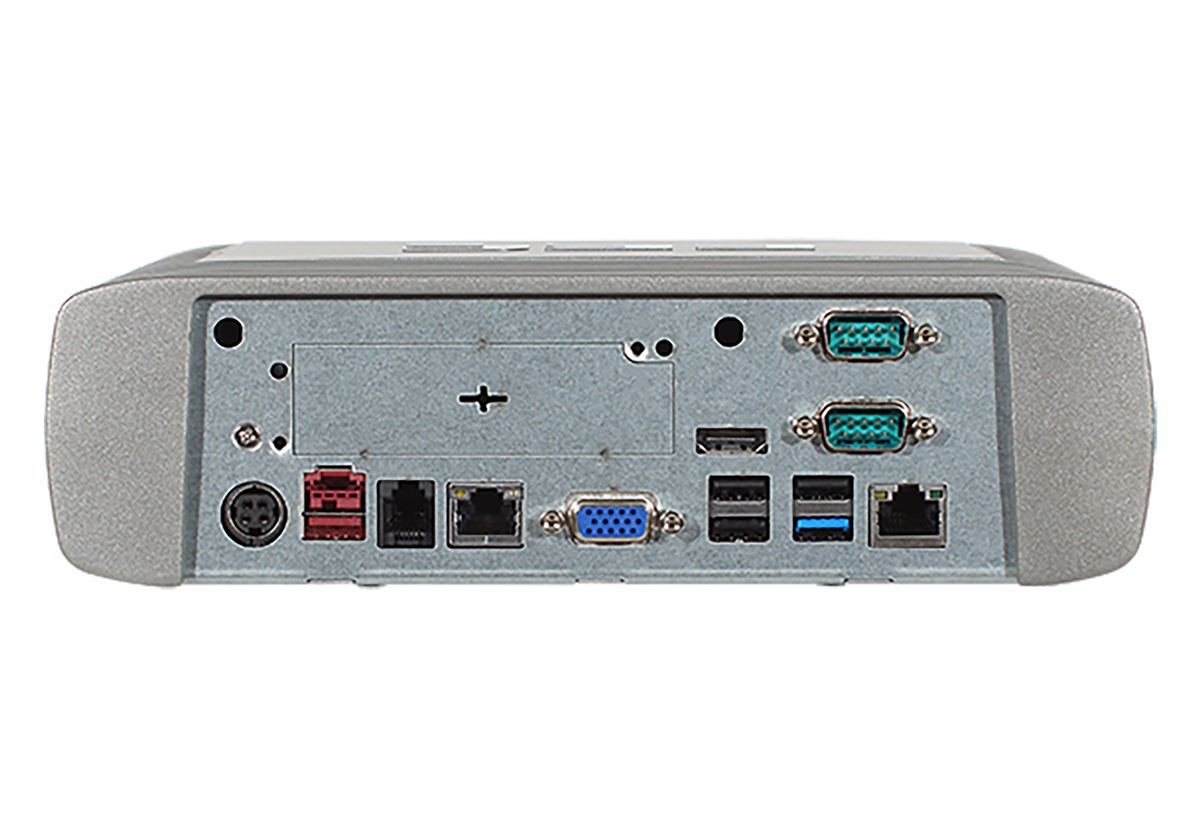

Rear IO Port
Rear IO Port
  • 1 x RJ45 (COM1) RS232
  • 2 x DB9 (COM2, COM3) RS232
  • 4 x USB Type A (3 x USB 2.0, 1 x USB 3.0)
  • 1 x PUSB 24V
  • 1 x RJ11 (12V / 24V) Supports Two Cash Drawers
  • 1 x RJ45 GigaLAN
  • 1 x VGA , 1 x Video

  • Front I/O:
    1 x USB 2.0 Type A
  • Internal I/O:
    1 x Mini PCIe
Optional
Optional
  • Type A: 2 x RJ45 (COM A, COM B) RS232, 1 x DC-Out 24V, 1 x Mic-in
  • Type B: 2 x RJ45 (COM A, COM B) RS232, 1 x PUSB 24V, 1 x Mic-in (Limited Current When Using PUSB 24V)
  • Type C: 2 x RJ45 (COM A, COM B) RS232, 1 x PUSB 12V, 1 x Mic-in
  • Type E: 2 x (RJ11)12V, 1 x Mic-in
  • Type G: 3 x PUSB 12V
  • Type H: 1 x PUSB 24V, 2 x 12V (Limited Current When Using PUSB 24V)
