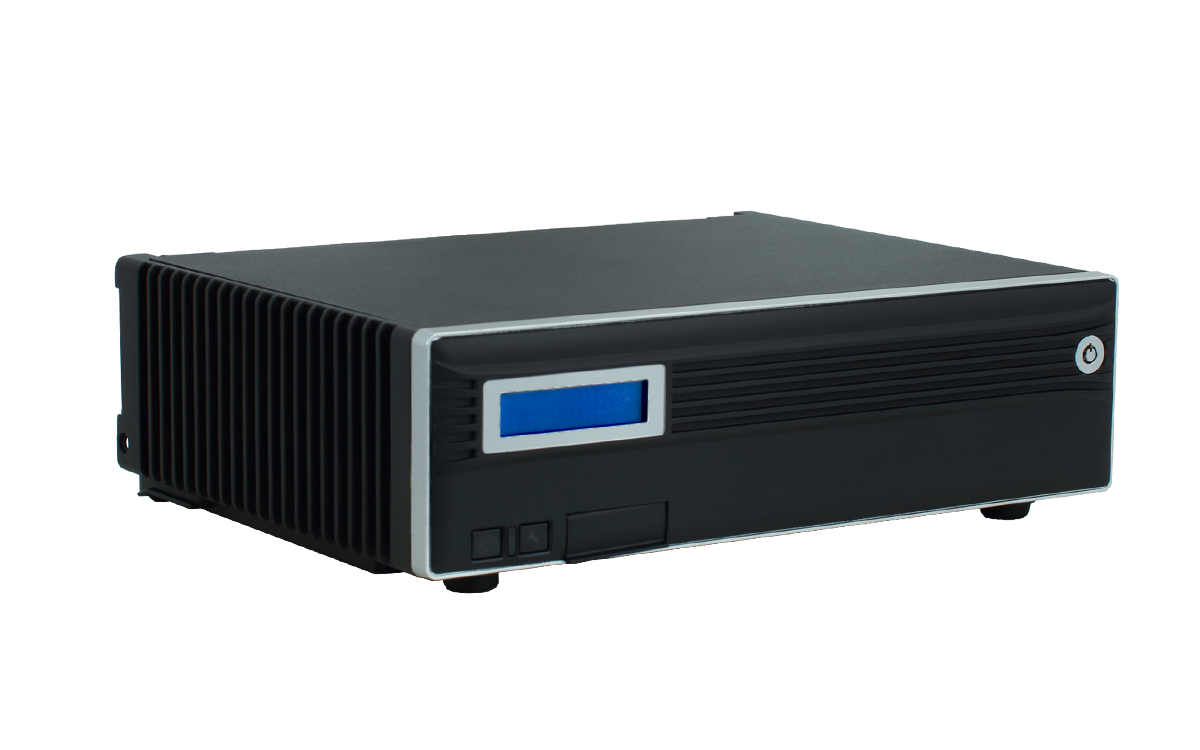

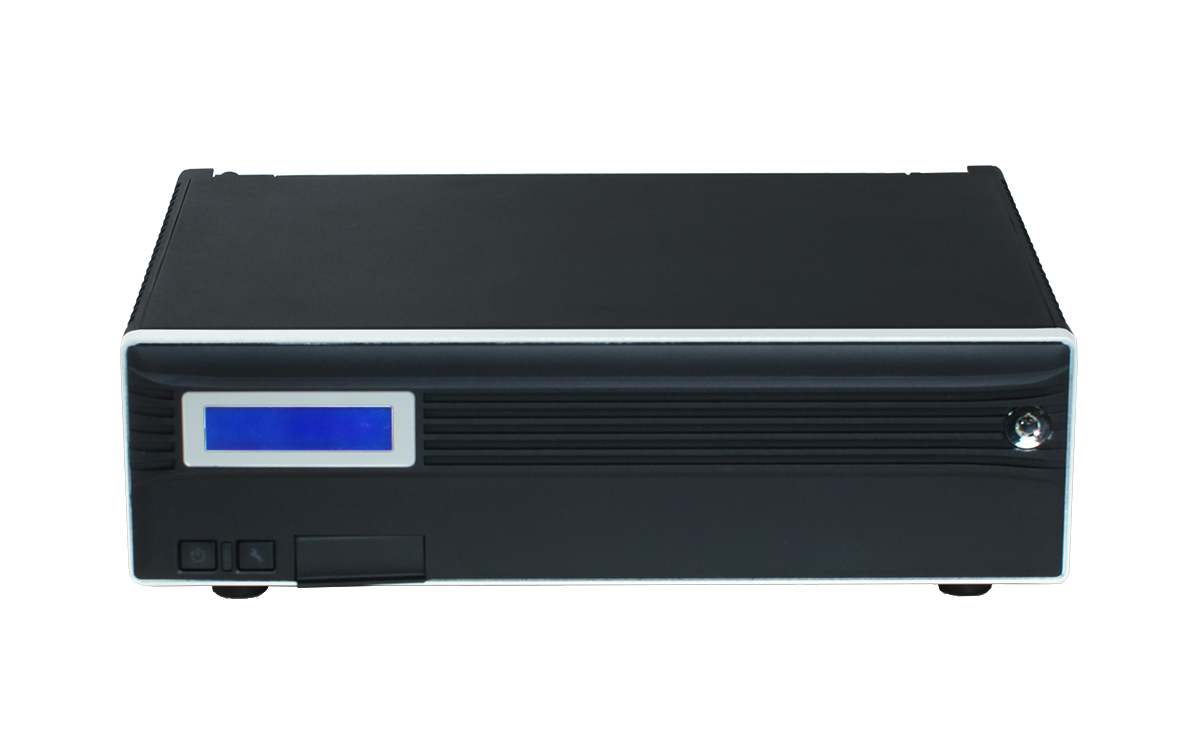

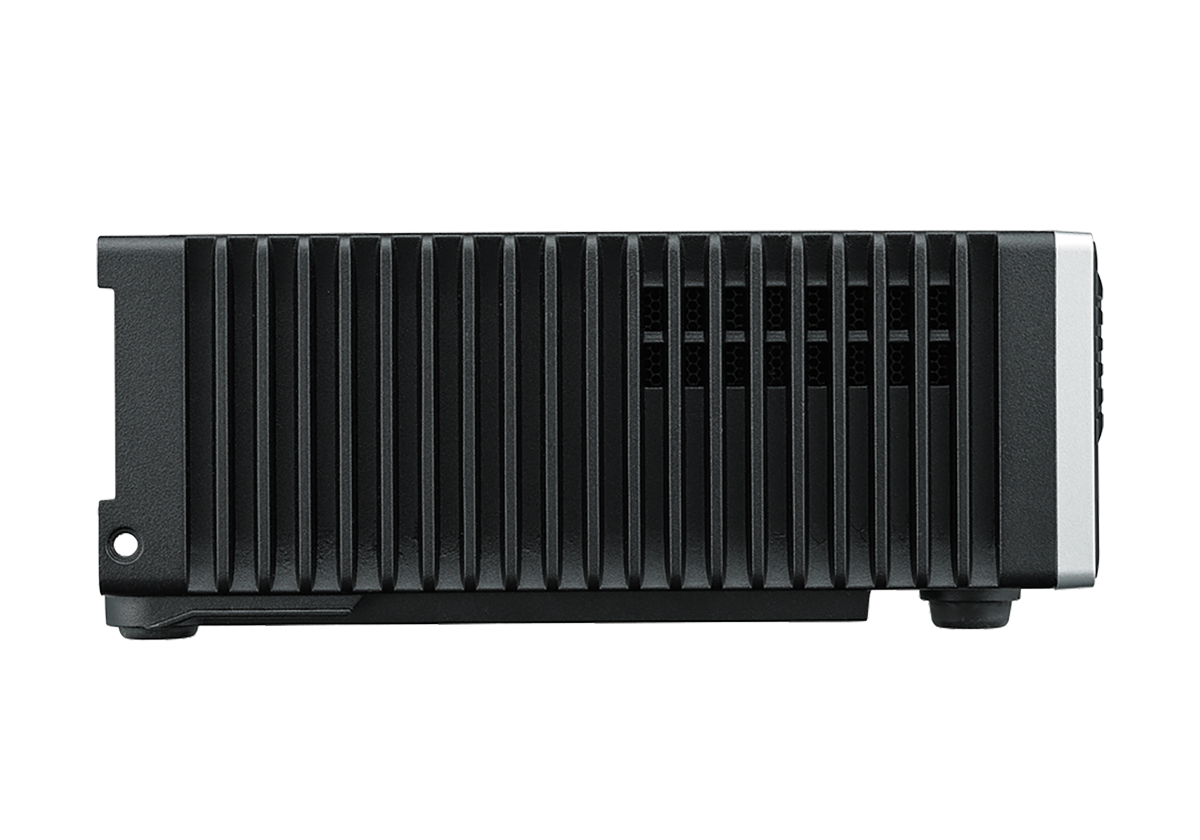

BP-566
Product Introduction
02
Modular Design
All of the components can be accessed and removed without complicated procedures. The design is incredibly easy to understand with makes service and upgrades very efficient.
03
Expandable I/O
We understand that every customer may need something just a little different. This is why we created a second I/O interface. System integrators can easily expand on the standard I/O interface by using any 1 of 6 easy to install I/O modules.
Type A
Type B
Type C
Type E
Type G
Type H
Specifications
CPU
- Intel® Celeron® G3900TE, 2.3Ghz
- Intel® Core i3-7101TE, 3.4Ghz
- Intel® Core i5-7500T, 2.7Ghz
- Intel® Core i7-7700T, 2.9Ghz
Memory
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
Storage
- 2 x 2.5” SATA HDD or SSD
- 1 x M.2 Storage (Optional)
Power
- 250W Internal ATX Power Supply
OS
- Windows 10
Certification
- FCC / CE Class B
Construction/Color
- Aluminum Die-casting + Plastic
- Black with Silver Trim
- White with Silver Trim
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Product: 310 x 95 x 235 mm
- Carton: 328 x 510 x 144 mm
Weight
- Net: 5 Kg
- Gross: 6 Kg

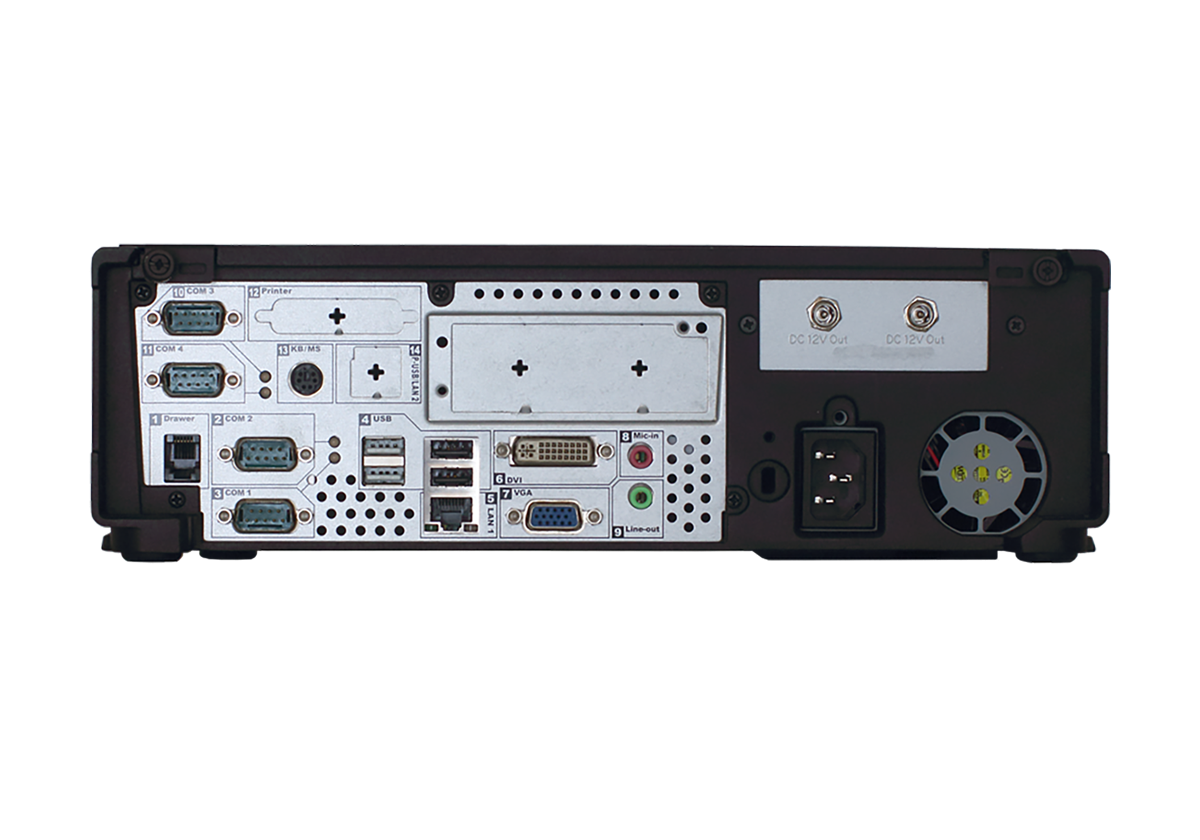

Rear IO Port
- 4 x DB9 (COM 1, COM 2, COM 3 & COM 4)
- 4 x USB Type A (2 x USB 2.0, 2 x USB 3.0)
- 1 x RJ11 Cash Drawer (12V)
- 1 x PS/2 Keyboard/ Mouse Port
- 1 x RJ45 GigaLAN
- 1 x Line Out, 1 x Mic In
- 1 x VGA (5V/12V Jumper setting), 1 x DVI-D
- 2 x 12V DC 2.5 mm Output
- Front I/O:
2 x USB 2.0 Type A
Optional 1
- 1 x Bi-directional Parallel Port with Type A / B / C / E / G / H
- Type A: 2 x RJ45 (COM A & COM B) RS232 with RI / 5V / 12V Selectable; 1 x 24V DC Output; 1 x Mic-in
- Type B: 2 x RJ45 (COM A & COM B) RS232 with RI / 5V / 12V Selectable; 1 x 24V PUSB; 1 x Mic-in
- Type C: 2 x RJ45 (COM A & COM B) RS232 with RI / 5V / 12V Selectable; 1 x PUSB 12V; 1 x Mic-in
- Type E: 2 x Cash Drawer 24V ; 1 x Mic-in
- Type G: 3 x PUSB 12V
- Type H: 2 x PUSB 12V, 1 x PUSB 24V
Optional 2
- PUSB 24 V + Type G: 3 x PUSB 12V, 1x PUSB 24V
- PUSB 24 V + Type H: 2 x PUSB 12V, 2 x PUSB 24V
