PP-9132W.
Product Introduction
01

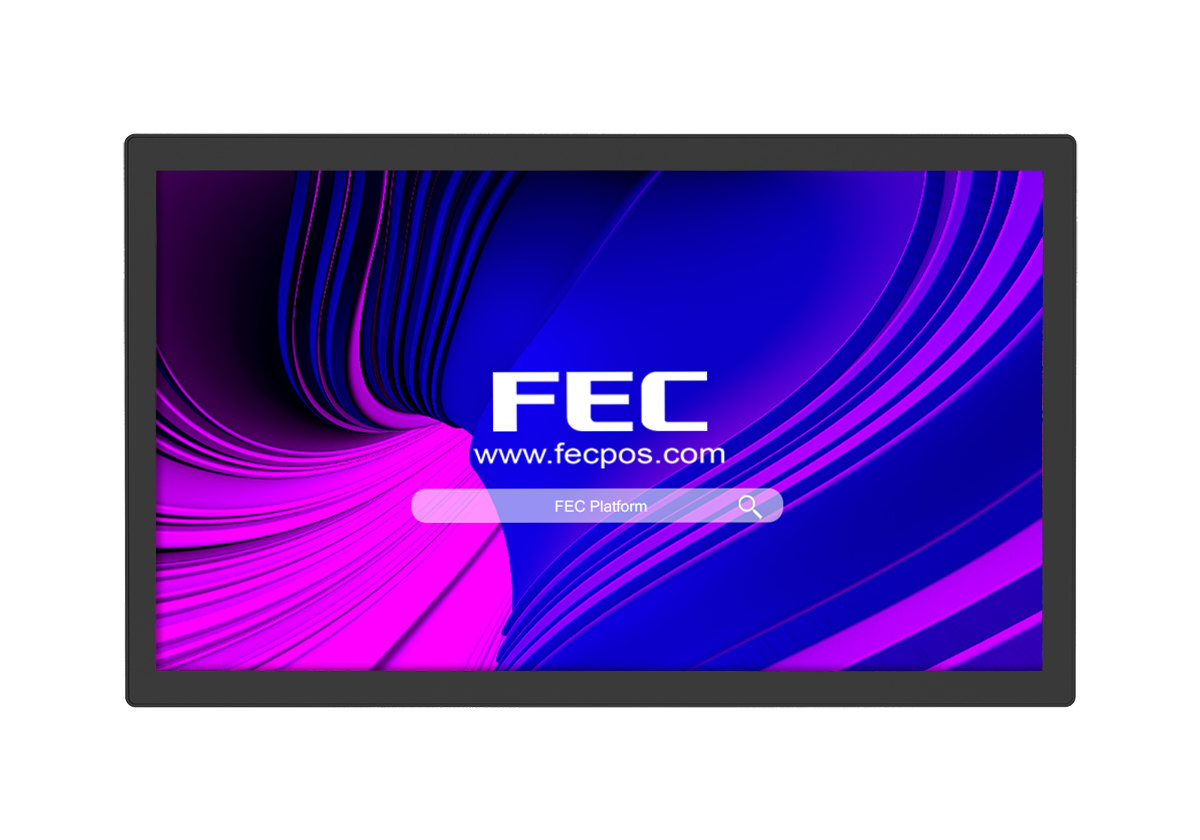

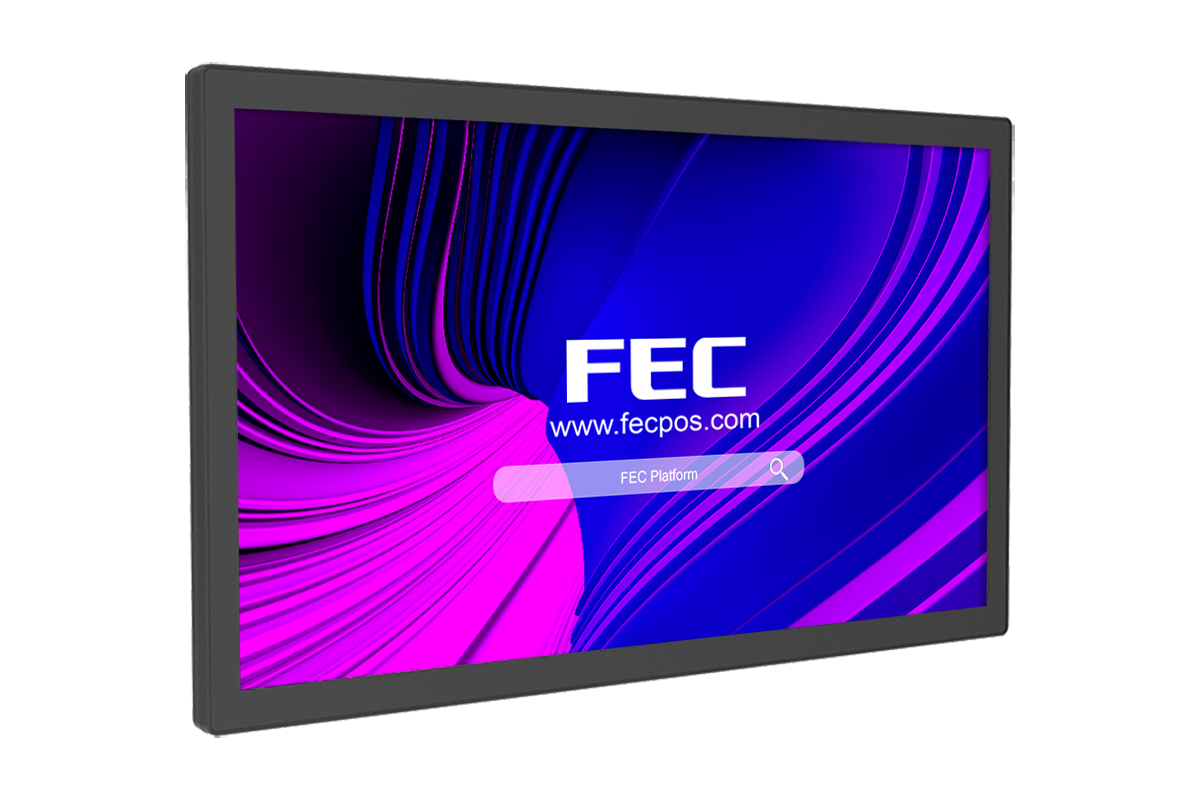

22" Fanless Panel PC
AerPPC PP-9132W is an ultra slim modular All-in-One panel PC. It' s fanless design offer you a silent and dust free operating environment.
- Platform: Android OS
- Processor: RK-3568 Quad-Core Cortex A55
- System Storage: 64GB eMMC ; External Micro SD
02
Digital Information Signage
No matter using AerPPC or AerMonitor, FEC 22 inch series are beautiful displays with high resolution screens. With universal VESA wall mount design, they can be easily mounted on any flat surface!
03
Large Enterprise Environment
Large screen All in One Android Panel PC is perfected for digital signage, product display, industrial control system or apply with self-ordering system.
04
FEC ANDROID
FEC provides a complete series of Android POS. From 10" to 22" in for lightweight usage, wall-mount as digital display or with stand for different types of POS terminals.
Specifications
CPU
- Rock chip RK-3568 Quad-core Cortex-A55 up to 2.0GHz
Memory
- 4GB DDR3 On Board
Storage
- 64GB Built-in eMMC
Connection
- WIFI 802.11 ac & BT 4.2 (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 22" TFT, 1920 x 1080
Touch
- True-Flat PCAP
Brightness
- 250 nits
MTBF
- 50K Hours
Camera
- 2MP Front Camera (Optional)
Power
- 20V / 90W or 20V / 130W External Adapter
OS
- Android 12
Mounting
- VESA 100 x 100 mm
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-casting + Plastic
- Black with Silver Trim
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
- Product: 513 x 309 x 45 mm
- Carton: 662 x 440 x 210 mm
Weight
- Net 5.7 kg
- Gross 7 kg
Port
- 1 x20V DC Input
- 1x RJ45 Gigabit LAN
- 1x Video Port
- 1x RJ11 Cash Drawer (12V or24V)
- 1 x SD/TF Card Slot (Max: 128GB)
- 1x Recovery button
- 2 x USB 2.0 ,1 x USB 3.0,1 x USB 3.0 (OTG)
- 2x RJ45 (COM1, COM2) RS232 (0V/5V/12V)
Optional
- 2 x USB2.0
- 1 x DB9 (COM3)
- 1x 24V DC Output
